SmArtGas 4 detector for Ex zones

The SmArtGas 4 gas sensor has been developed to provide reliable gas measurement, monitoring and detection in harsh environments. Designed in accordance with the ATEX Directive, it is intended to operate within explosive atmospheres, which also allows it to function in other harsh environmental conditions, such as when there are high temperatures, vapours, moisture or dust around.

Unique features

3 possible configurations: Without display, with local LCD or FLED display

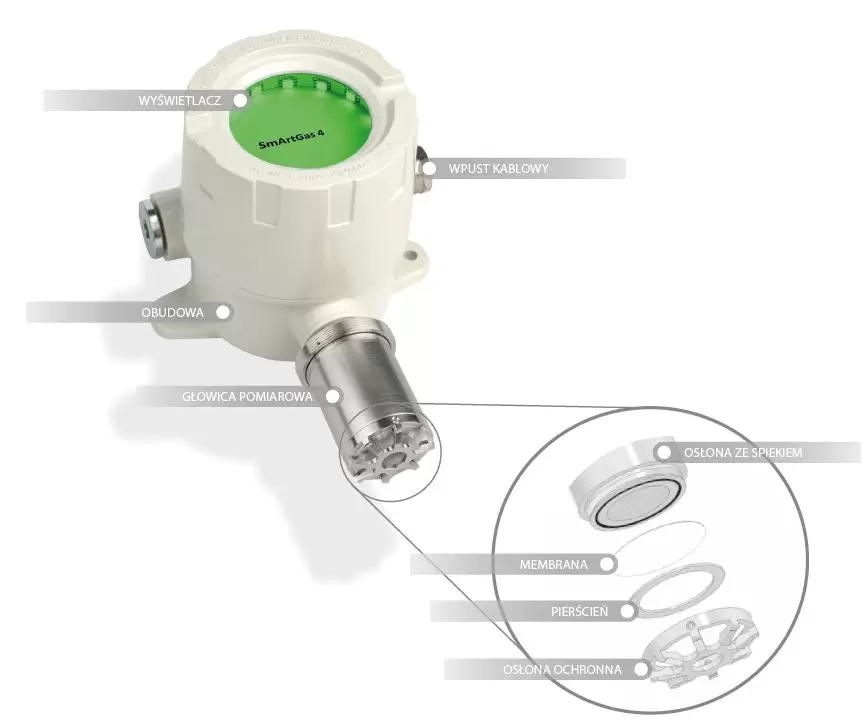

New innovative
measuring head

Individually selectable sensor, e.g. the possibility of
detection of % LEL and single ppm.

The SmArtGas 4 detector is based on a newly designed electronic platform with Bluetooth communication. The measuring head (‘FL, FH’) has also been redesigned, so that the SmArtGas 4 sensor working with the pellistor sensor has achieved more than double the response times (T90) in tests*. It is currently one of the fastest devices on the market which, in addition is the only one of the sensors manufactured in Poland, ensures protection level IP67 (as an additional option to protect the measuring mechanisms against water and dust, by means of an additional Teflon membrane). The radio interface (Bluetooth) used provides the possibility of remote calibration and configuration of the sensor.

Extremely simple danger indication

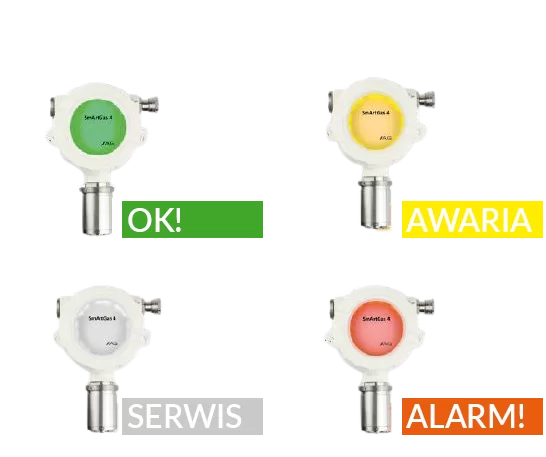

The SmArtGas 4 is also equipped with the innovative R-G-OFF (GAS-OK) system. It is a safety system that allows the efficiency of the system and the level of safety to be assessed at any time. The R-G-OFF system has been designed on the basis of easy-to-recognise light signals. The guiding principle is that any light message other than the green light obliges staff to respond immediately. This system is applicable to the SmArtGas 4 detector via the FLED – a four-colour optical alarm integrated into the gas sensor which enables the immediate location of a potential hazard, or via an additional LTT optical/acoustic alarm. In addition, it provides comfort and a sense of security for staff by being able to assess the emergency at any time.

Why choose the SmArtGas 4 detector?

Main features

Variety of gases and vapours detected.
Wide range of operating temperatures.
Large selection of user interfaces: Modbus ASCII, 4 – 20 mA, relay outputs, LCD/FLED display, radio interface (Bluetooth).
Can be supplied with sound signalling.
Housing options: aluminium, Creodur-coated aluminium or acid-resistant steel.
Dedicated accessories for the sensor.
The sensor is equipped with a state-of-the-art head for optimum metrology performance.
Achieve IP66/IP67 if necessary (if a suitable membrane is used).
Configurable current source (source/sink).

Basic functions

Non-invasive calibration and configuration – the sensor can be calibrated and parameterised (e.g. alarm threshold values) in Ex zones without opening the housing or disabling other parts of Gas Safety System.
A solution for calibrating sensors located in hard-to-reach places.
Remote communication with the sensor.
Electronic compensation for ambient temperature effects.
Self-diagnostic function.
Storage in the sensor’s memory of parameters such as CAS number of the substance, location name, serial number, time between mandatory calibrations.

Explosion-proof properties

Designation on the device nameplate

Number of the notified body supervising the production process
ATEX and IECEx certification number of the device
Explosion-proof feature of the device
Information on ambient temperature, power and IP

Additional information related to the explosion protection of the device

Additional information related to the explosion protection of the device
The recommended operating position of the sensor is head down. Other items may significantly reduce the IP of the device.
The device should not be covered with dust.
Each time the sensor housing cover is screwed on, pay attention to the housing thread.
Incorrect screwing may damage the threads of the housing.
Incorrectly tightening the screw securing the sensor housing cover can damage the housing threads.
Incorrectly tightening the screw securing the sensor cover can damage the threads.
Removing the protective cover affects its level of impact protection for the sensor – the device cannot operate without the protective cover.
Do not repair the flameproof joints of the device

Parametry urządzenia

Detector	SmArtGas 4
Types of gases
Flammable gases, Diversity of detected gases and vapors.	Catalytic sensors
Measurement range
LFL	0–100%
Performance
Proper response time*	Example T90 ≤ 9 s T20 ≤ 3 s
Required operating temperature range of the cable gland	For T6 class: -40 < Tservice < 80°C For T5 class: -40 < Tservice < 100°C
Required operating temperature range of the cable	For T6 class: -40 < Tservice < 85°C For T5 class: -40 < Tservice < 95°C
Relative humidity	10 – 90% continuously 0 – 99% momentarily Without condensation
Pressure range	1013 ± 10% hPa

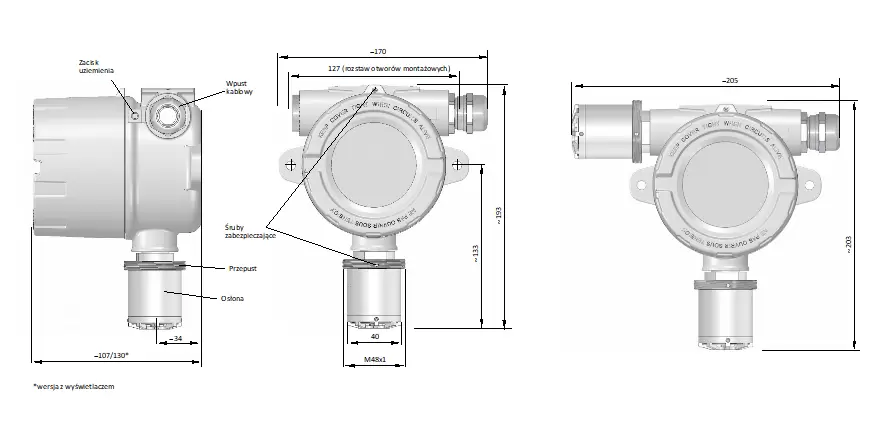

Physical features
Wiring	0,5 – 2,5 mm2
Protection degree	IP 67 (head with FL.M, FH.M membrane) IP 63 (other heads)
Weight	3,5 kg
Enclosure material	Aluminum covered with epoxy paint Aluminum covered with Creodur coating Stainless steel
Head material	Stainless steel
Cable entries	2 x 3/4” NPT or 2 x M25 x 1,5 mm
Approvals
ATEX/IECEx	The temperature range, temperature class, and power consumed by the device depend on the sensor configuration: D = FLED / FLED.A / LCD II 2G Ex db IIC T6...T5 Gb II 2D Ex tb IIIC T80°C...T95°C Db D = 0 II 2G Ex db IIC T6 Gb II 2D Ex tb IIIC T80°C Db
Electrical protection class	III
* Depending on the gas. Detailed information available in the device user manual.
