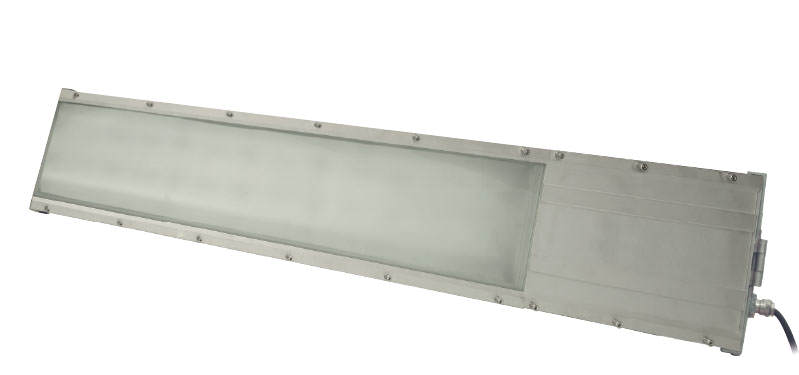

Ex-Linear LED light fitting LL48

Linear light fitting with high-power LED

(Zone 2,21, 22)

LL48 Ex-Linear LED luminaires are designed to withstand the harshest conditions within gas Ex areas Zone 2 and dust Ex areas Zone 21 and 22, providing ideal solutions for a wide range of applications. With its rated luminous flux up to 8000 lm the LL48 is suitable for applications where high light output is required, comparable to a 2 x 58 W fluorescent light fitting. LL48 Ex-Linear LED combines a shock and vibration resistant luminaire with the low cost of ownership and energy efficiency of the Crouse-Hinds Series LED technology. High-performance LEDs and a solid-state electronic driver provide light where you need it, at a fraction of the operating costs of conventional lighting technologies.

Different types for any application:

The LL 48 Ex-Linear LED is available in two versions for different applications:

  • Linear light fitting and
  • Linear light fitting with self-contained battery system (type EM).

EM light fittings with self-contained battery are available with different emergency light functions:

  • EM1 with emergency lighting duration of 3 hours and 35 % luminous flux,
  • EM2 with emergency lighting duration of 2 hours and 50 % luminous flux.

All luminaires can be delivered with clear (-C-) or opaque (-F-) protective cover.

  • Linear light fitting for normal lighting and with self-contained battery for emergency lighting (type EM)
  • Immediate start, instant full illumination
  • No lifetime reduction due to switching cycles
  • High efficient and energy saving up to 42 %
  • Superb safety and reliability, robust construction
  • Protective cover in clear or opaque impact resistant glass
  • Wide temperature range and a brilliant optical performance for a wide application range
  • Mercury-free and environment-friendly
  • High degree of protection IP66
  • LL48 5L… (5000 lm) emergency lighting with opaque cover
  • LL48 6L… (6000 lm) emergency lighting with clear cover
  • LL48 7L… (7000 lm) with opaque cover
  • LL48 8L… (8000 lm) with clear cover
