Ex-Ceiling pendant light fittings and floodlights ATEX
Normally high pressure discharge lamps are used in combination with pendant light fittings and floodlights. They provide a high light output and a relatively long life span. Depending on the required light colour, HP metal halide lamps or HP sodium vapour lamps are usually fitted.
The innovating white high-power LED technology has an extreme long life span. Moreover, it is insensitive to vibrations and shocks. With its very high efficiency, it enables a higher intensity of light with lower power consumption. The compact design and the relatively low heat generation allows the use of this technology in small luminaire housings.
Due to the particularly robust and solid design of the enclosure in combination with the vibration resistance of the LED module, the LPL LED floodlight is insensitive to impact, shocks, and vibrations. As a result, the LPL LED represents the ideal lighting concept for use in areas with difficult environmental conditions. Thanks to the LED technology, extreme temperatures from - 36 °C up to + 55 °C are not a problem. The rugged, flameproof light metal enclosure in the degree of protection IP 66 and the impact-resistant light output meets the highest corrosion protection and mechanical resistance requirements.
These light fittings meet the requirements of ATEX-Directive 2014/34/EU for temperature class T6. They are certified for use in hazardous areas in Zones 1 and 2 with a temperature class up to T6, as well as for explosive dust atmospheres in Zones 21 and 22. What is more, they also meet the requirements in accordance with EN 60598, Part 2.22 for emergency lighting.
The explosion-protected pendant light fittings for incandescent and energy-saving lamps, high intensity discharge and induction lamps can be used with their different housing solutions in different areas. The robust flameproof luminaires have been in use in many industrial plants for many years and have stood the test of time.

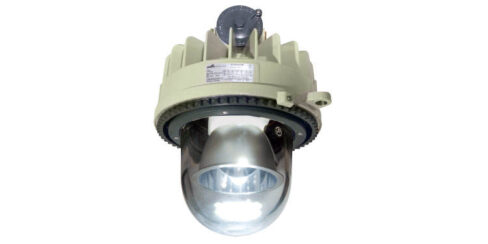

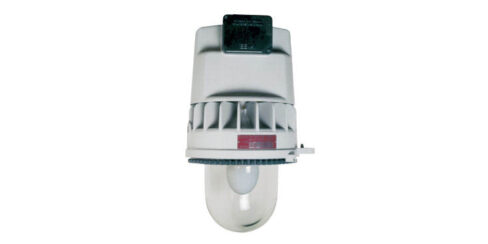

These EV, dHLS and EVZ luminaire series are designed for the use of high-pressure discharge lamps. Ballasts and lamps are located in a common housing. The flameproof enclosures are connected via an easy-to-mount Ex-e terminal compartment. The protective cover is made of borosilicate glass and is extremely impact and heat resistant. All external screws are made of stainless steel. The lamp replacement is done by opening the PTFE coated connection ring. Both the glass dome and the connection ring are hinged for easy access. Depending on the type, the light fittings are certified for ambient temperatures from - 45 °C up to 55 °C.

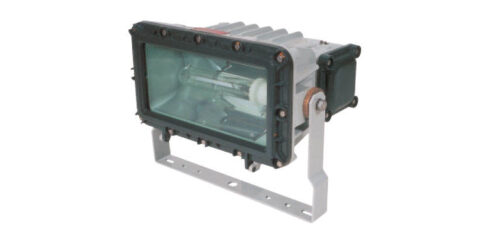

Thanks to the high degree of protection IP66, the robust floodlights of the series PX 04 and FLT 10 for hazardous areas are suitable for the illumination of large areas and objects under harsh environmental conditions, such as those found in industrial, chemical and petrochemical plants, on- and offshore oil and gas production plants, pipelines, refineries and loading ramps. High-pressure discharge lamps from 70 W to 600 W provide a high illuminance level.

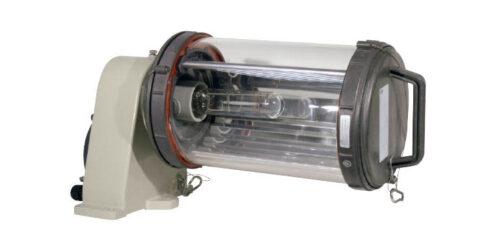

Due to the spatial separation of the lamp module, lamp base and ballast, this powerful and robust spotlight for high-pressure discharge lamps can be installed and maintained in an easy and quick way. The Ex-e ballast enclosure with the compensation capacitor can be mounted within arm‘s reach. Only the light Ex-e enclosure made of copper-free aluminium for the ignitor is mounted at the desired mounting height of the floodlight and the Ex-d lamp module is simply plugged in and locked. This allows a one-man installation without a crane or other lifting tools.

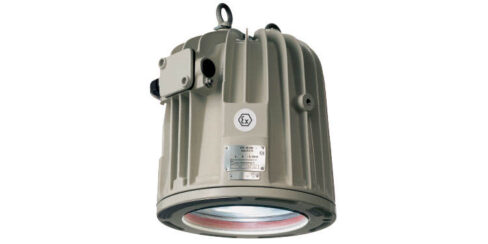

The robust dTLS 85 floodlight and the GHG 664 emergency pack for use in hazardous areas in Zones 1 and 2 are suitable for illuminating large areas and objects. Due to the high degree of protection IP66, they are best suited for harsh environments, such as offshore oil and gas production plants or industrial, chemical and petrochemical plants, oil and gas production plants, pipelines, refineries and loading ramps. High-pressure discharge lamps from 70 W to 250 W provide a high illuminance level.
F2C LED floodlights are designed to withstand the harshest conditions within Zone 1 IIC gas environments, providing ideal solutions for a wide range of applications. F2C LED combines a shock and vibration resistant solid state luminaire with the low cost of ownership and energy efficiency of Crouse-Hinds Series technology.
The robust and compact explosion-protected KFL tank inspection light fitting is used in all sectors of the process industry for the illumination of boiler interiors, tanks and agitators. The light features special mounting feet which can be attached to different inspection windows of sizes DN 40 to DN 80 in accordance with DIN 28120. The housing is made of copper-free aluminium and has a lens made of impact-resistant borosilicate glass. The aluminium collar has a PTFE coating (Teflon) and is sealed with a Viton seal.

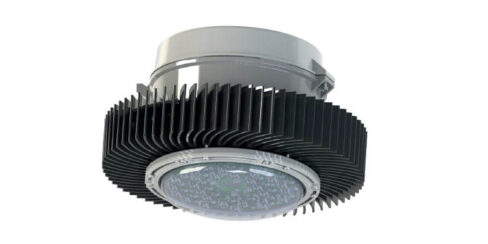

The energy-saving VMV pendant light fittings and floodlights with LED technology are ideal for all general lighting applications in hazardous areas in Zone 2 and hazardous dust areas in Zones 21 and 22. With the integrated high-power LED technology, these lights can be used to replace comparable conventional light sources with an equivalent capacity of up to 1000 W.

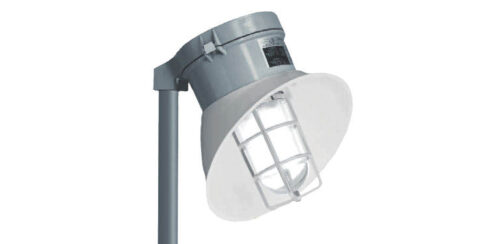

The NVMV series of pendant light fittings for high-pressure discharge lamps in IEC metallic design is suitable for operation in hazardous areas in Zone 2 and Zones 21/22, in particular in harsh environments with high mechanical load, moisture and dust. The lights are available in 2 sizes: The small enclosure for lamps from 70 W to 250 W (preferably 70 -150 W); the large enclosure for lamps of 250 W and 400 W. All versions can be operated with both HSE and HIE lamps and are suitable for low and medium suspension heights. Thanks to their high degree of ingress protection and wide temperature range, this series can also be used under extreme conditions.
The new series of energy-saving FMV floodlights in LED technology are ideal for all general lighting applications in explosive gas atmospheres Zone 2 and in explosive dust atmospheres Zone 21 and 22. The floodlights with a light output from 3189 lm up to 15181 lm can be used to replace comparable conventional light sources with an equivalent power of 50 W up to 400 W. The new types NFMV 25L and 50L can even replace highest luminous flux power up to 600 W of conventional HP lamps. High efficient power LED modules with more than 112 lumen per watt enables up to 70 % energy cost reduction compared to HID fixtures.
