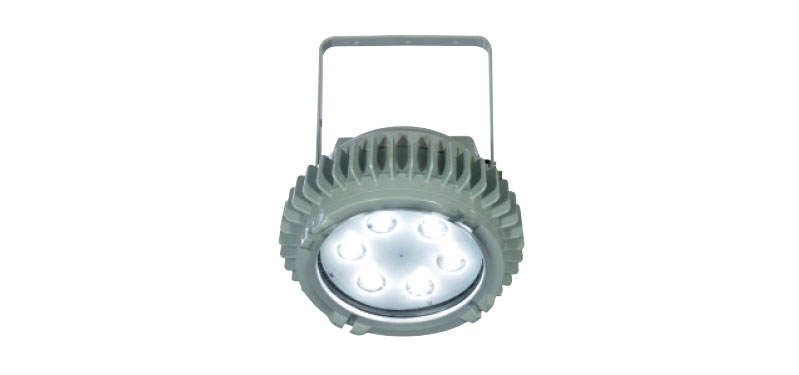

Ex-LED-Floodlight LPL LED
(Zone 1, 2, 21, 22)
Due to the particularly robust and solid design of the enclosure in combination with the vibration resistance of the LED module, the LPL LED floodlight is insensitive to impact, shocks, and vibrations. As a result, the LPL LED represents the ideal lighting concept for use in areas with difficult environmental conditions. Thanks to the LED technology, extreme temperatures from – 36 °C up to + 55 °C are not a problem. The rugged, flameproof light metal enclosure in the degree of protection IP 66 and the impact-resistant light output meets the highest corrosion protection and mechanical resistance requirements.
An efficient lighting technology
The LPL LED lighting series offers the latest lighting technology with a high luminous flux and, at the same time, an extremely low energy requirement. The LED modules provide a long service life combined with a high level of efficiency. With a power consumption of 53 W to 105 W, the LPL LED lighting series is ideal for replacing 70 W to 250 W light fittings with high pressure discharge lamps, whereby, the low energy consumption and the long service life (> 50,000 h) of the LED module keep operating costs pleasantly low.
The LPL LED lighting series is suitable for medium and high suspension heights. It is the ideal solution for the illumination of open spaces, indoor areas and roads in industrial installations. Further applications include on- and offshore plants in the oil and gas industry, chemical plants, waste disposal facilities, shipyards, power stations and mills where extreme amounts of dirt and moisture and increased mechanical hazard are to be expected. A U-shaped mounting bracket for wall and ceiling installation of the LPL LED is included.
- High-power LED modules with up to 63% energy saving
- Flameproof enclosure for Zones 1, 2, 21 and 22 and temperature class T6
- Wide temperature range from -36 °C to +55 °C
- CU-Certificate for Eurasian Economic Community available
- High degree of protection IP 66 for harsh environments
- Large Ex-e terminal compartment for ease of installation
