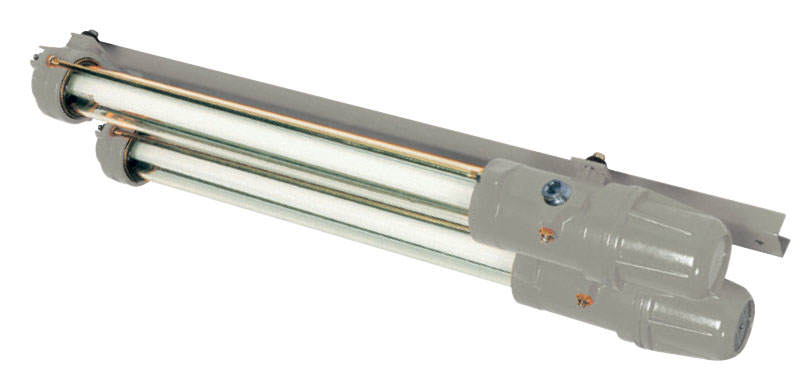

Ex-Linear light fitting with metal housing
EVF…E / EVF…C
(Zone 1, 2, 21, 22)
With its flameproof housing made of copper free aluminium (Cu < 0.1 %), high degree of protection IP67 and protective tube made of borosilicate glass with a high mechanical and thermal stability, this luminaire is the ideal solution for harsh and hazardous environments.
The luminaire for all types of applications
The EVF luminaire series with G13 sockets for fluorescent lamps are either fitted with an electronic (EVF .. E) or electromagnetic ballasts (EVF .. C). Two types are available: single lamp or double lamp versions. The easy-to-open threaded cover, the large terminal compartment and the lamp assembly on a guide carriage facilitate servicing.
- Robust Ex-d housing
- Temperature class T6
- Electronic or electromagnetic ballast
- Easy opening due to screw cover on end
- Large terminal compartment
- High degree of protection IP67
- EVF 120 E (1 x 18 W)
- EVF 140 E (1 x 36 W)
- EVF 165 E (1 x 58 W)
- EVF 240 E (2 x 36 W)
- EVF 265 E (2 x 58 W)
- EVF 120 C (1 x 18/20 W)
- EVF 140 C (1 x 36/40 W)
- EVF 165 C (1 x 58/65 W)
- EVF 240 C (2 x 36/40 W)
- EVF 265 C (2 x 58/65 W)
