Ex Floodlights for high-pressure discharge lamps

Series PX 04 and FLT 10

(Zone 1, 2, 21, 22)

Thanks to the high degree of protection IP66, the robust floodlights of the series PX 04 and FLT 10 for hazardous areas are suitable for the illumination of large areas and objects under harsh environmental conditions, such as those found in industrial, chemical and petrochemical plants, on- and offshore oil and gas production plants, pipelines, refineries and loading ramps. High-pressure discharge lamps from 70 W to 600 W provide a high illuminance level.

Description

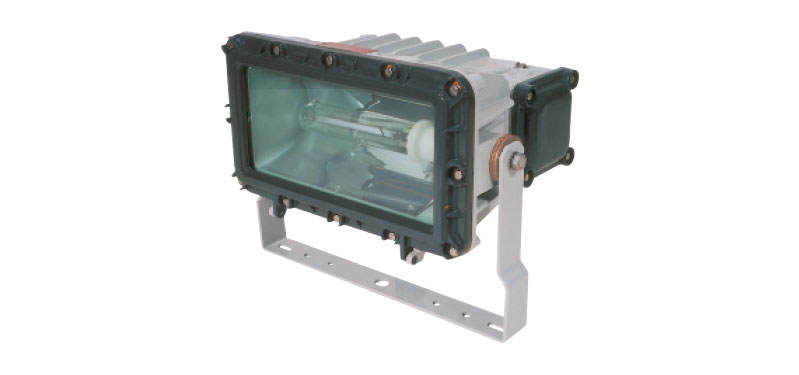

PX 04 – multifunctional

The PX 04 light fitting enclosure is made of copper-free aluminium. The protective glass cover is made of scratchproof borosilicate glass; it protects the internal reflector against harmful environmental conditions.

Depending on the application, a wide beam or a narrow beam reflector can be chosen. All external screws are made of stainless steel. The easy-to-maintain electrical connection is made via a flanged-on Ex-e connection compartment. The ballast with thermal protection and a pulse ignitor with automatic shut off provide additional safety. The floodlight features an adjustable mounting bracket that allows an optimum focussing of the light.

FLT 10 – for Arctic conditions

Specially designed for use in areas with extremely low temperatures, the FLT 10 was developed as a version of the tried and tested PX 04 floodlight.

Thanks to its highly polished aluminium reflector, the FLT 10 has a high lighting efficiency of 62%. Depending on the application, a wide beam or a narrow beam reflector can be chosen. The housing design and connections are the same as those of the PX 04. As it has been certified for ambient temperatures from -55 °C up to +55 °C, the FLT 10 is the ideal light source for use in extreme climates.

Features

Floodlight for high-pressure discharge lamps
Robust design for harsh environments
High degree of protection IP 66
With large Ex-e terminal compartment
Depending on the version, large ambient temperature range from -55 °C up to +55 °C
CU-Certificate for Eurasian Economic Community available
Meets the highest corrosion protection and mechanical strength requirements
