Ex-Tank inspection luminaire KFL

(Zone 1, 2, 21, 22)

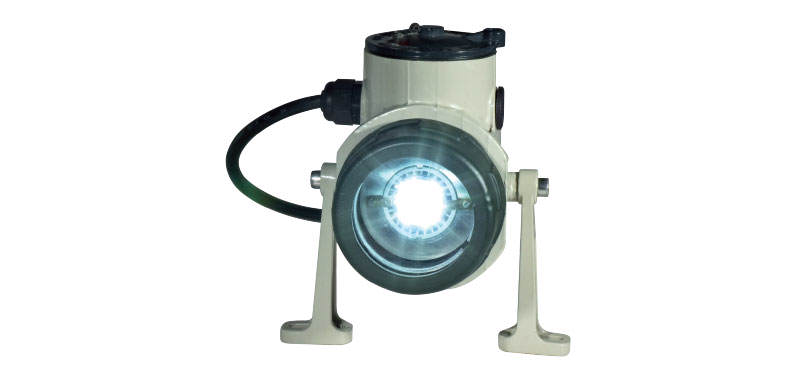

The robust and compact explosion-protected KFL tank inspection light fitting is used in all sectors of the process industry for the illumination of boiler interiors, tanks and agitators. The light features special mounting feet which can be attached to different inspection windows of sizes DN 40 to DN 80 in accordance with DIN 28120. The housing is made of copper-free aluminium and has a lens made of impact-resistant borosilicate glass. The aluminium collar has a PTFE coating (Teflon) and is sealed with a Viton seal.

Multifunctional use

In addition to the use for illuminating boilers, this tank inspection light fitting can be used in combination with a special handle as a maintenance and repair light. High-voltage halogen reflector lamps as well as high-power LED lamps can be used. The extremely robust design of this fitting, the resistance to chemicals and UV and the high degree of protection IP 66 allow the use of this light fitting even under extremely harsh conditions.

  • Compact design
  • Ready to connect for 230 V AC
  • With 50 W halogen reflector lamp or 7 W high-power LED lamp
  • High luminous efficacy
  • Generously dimensioned terminal compartment
  • Mounting onto inspection windows according to DIN 28120
  • High degree of protection IP67
  • KFL 50
  • KFL 50
  • KFL 7 LED
  • KFL 7 LED
