Ex Pendant light fittings for high-pressure discharge lamps
EV. / dHLS / EVZ
(Zone 1, 2, 21, 22)
These EV, dHLS and EVZ luminaire series are designed for the use of high-pressure discharge lamps. Ballasts and lamps are located in a common housing. The flameproof enclosures are connected via an easy-to-mount Ex-e terminal compartment. The protective cover is made of borosilicate glass and is extremely impact and heat resistant. All external screws are made of stainless steel. The lamp replacement is done by opening the PTFE coated connection ring. Both the glass dome and the connection ring are hinged for easy access. Depending on the type, the light fittings are certified for ambient temperatures from – 45 °C up to 55 °C.
EV pendant light fitting with 2 housing sizes
The EV pendant light series is suitable for use with sodium or metal halide high-pressure discharge lamps. The small enclosure solution can be used with lamps up to 125 W. The large enclosure solution is suitable for lamps with a power consumption of up to 250 W.
dHLS – the robust pendant light
The robust dHLS pendant light fitting has been certified for hazardous areas in Zones 1 and 2 and is suitable for 250 W and 400 W high pressure lamps . The housing is made of a light alloy with a powder coating. Because of its high operational safety, it has been used in chemical plants and on- and offshore platforms for illuminating large areas and selective large objects for many years now. The light fitting is fitted with a dome-shaped glass cover and can also be fitted with an external reflector.
EVZ – highly versatile
The EVZ pendant light fittings are available in 2 versions for 70 W to 150 W and 150 W to 400 W. The luminaire can be fitted with a swivel bracket for wall or pole mounting. Two external reflectors and a protective guard are available as an option.
- Various enclosure-size solutions
- For high-pressure discharge lamps
- Robust design for harsh environments
- Large Ex-e terminal compartment
- Wide ambient temperature range depending on the version from -45°C up to +55°C
- CU-Certificate for Eurasian Economic Community available
- Meets the highest standards of corrosion protection and mechanical strength
EV. …
- EVS 70 ZM
- EVS 70 ZM, -45 °C up to +55 °C
- EVM 125 ZM
- EVM 125 ZM, -45 °C up to +55 °C
- EVS 150 ZM
- EVS 150 ZM-45 °C up to +55 °C
- EVM 250 ZM
- EVM 250 ZM, -45 °C up to +55 °C
- EVS 250 ZM
- EVS 250 ZM, -45 °C up to +55 °C
- EVH 250 ZM
- EVH 250 ZM, -45 °C up to +55 °C
dHLS 85 …
- dHLS 85250 HME IND
- dHLS 85250 HME KOMP
- dHLS 85250 HSE IND
- dHLS 85250 HSE KOMP
- dHLS 85400 HME IND
- dHLS 85400 HME KOMP
- dHLS 85400 HSE IND
- dHLS 85400 HSE KOMP
- dHLS 85400 HSE IND-50 °C up to +50 °C

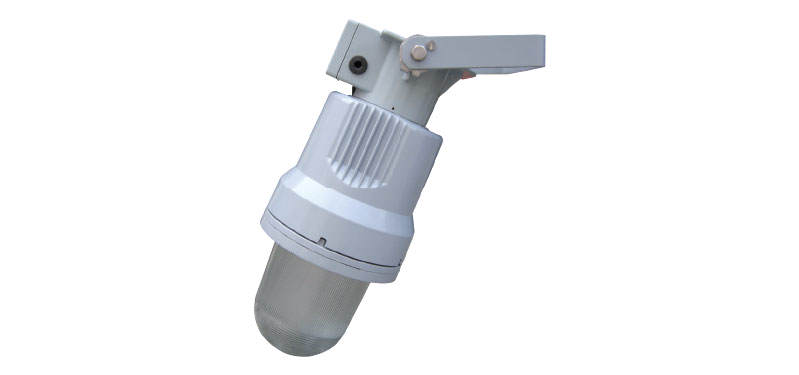

EVZ small enclosure
- EVZIS2M075 – 230 V AC
- EVZIS2M076 – 240 V AC
- EVZIS2M105 – 230 V AC
- EVZIS2M106 – 240 V AC
- EVZIS2M155 – 230 V AC
- EVZIS2M156 – 240 V AC
- EVZIM2M075 – 230 V AC
- EVZIM2M076 – 240 V AC
- EVZIM2M105 – 230 V AC
- EVZIM2M106 – 240 V AC
- EVZIM2M155 – 230 V AC
- EVZIM2M156 – 240 V AC
EVZ large enclosure
- EVZIS2M255 – 230 V AC
- EVZIS2M256 – 240 V AC
- EVZIS2M405 – 230 V AC
- EVZIS2M406 – 240 V AC
- EVZIS2M605 – 230 V AC
- EVZIS2M606 – 240 V AC
- EVZIM2M255 – 230 V AC
- EVZIM2M256 – 240 V AC
- EVZIM2M405 – 230 V AC
- EVZIM2M406 – 240 V AC
