Ex-Pendant light fittings and floodlights of the series NVMV
(Zone 2, 21, 22)
The NVMV series of pendant light fittings for high-pressure discharge lamps in IEC metallic design is suitable for operation in hazardous areas in Zone 2 and Zones 21/22, in particular in harsh environments with high mechanical load, moisture and dust. The lights are available in 2 sizes: The small enclosure for lamps from 70 W to 250 W (preferably 70 -150 W); the large enclosure for lamps of 250 W and 400 W. All versions can be operated with both HSE and HIE lamps and are suitable for low and medium suspension heights. Thanks to their high degree of ingress protection and wide temperature range, this series can also be used under extreme conditions.
Wide range of applications
The NVMV lighting series is suitable for wall, ceiling and pole mounting. This makes them the ideal solution for almost any industrial applications, such as the illumination of open spaces, indoor areas and roadways in industrial plants in the oil and gas industry, chemical plants, waste disposal facilities, shipyards, power stations and mills.
- NVMV S / M pendant light fittings for high pressure discharge lamps
- From 70 W to 400 W
- Wide temperature range from -45 °C up to +55 °C
- High degree of ingress protection IP66 for harsh environments
NVMV small enclosure, with ceiling mounting
- S2MC 075 O 00
- S2MC 105 O 00
- S2MC 155 O 00
- S2MC 255 O 00
- M2MC 075 O 00
- M2MC 105 O 00
- M2MC 155 O 00
- M2MC 255 O 00

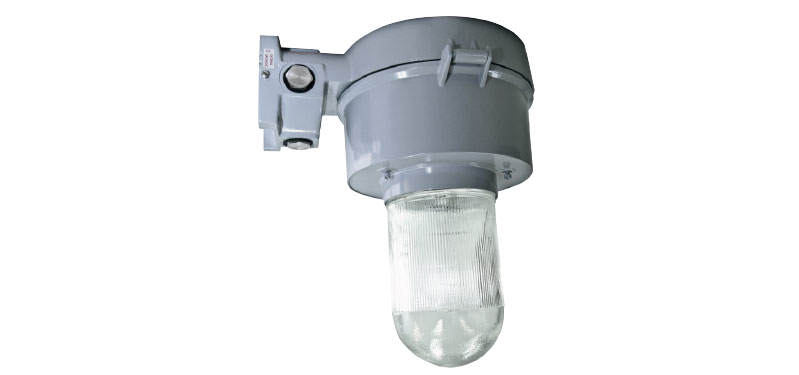

NVMV small enclosure, with wall mounting
- S2MW 075 O 00
- S2MW 105 O 00
- S2MW 155 O 00
- S2MW 255 O 00
- M2MW 075 O 00
- M2MW 105 O 00
- M2MW 155 O 00
- M2MW 255 O 00

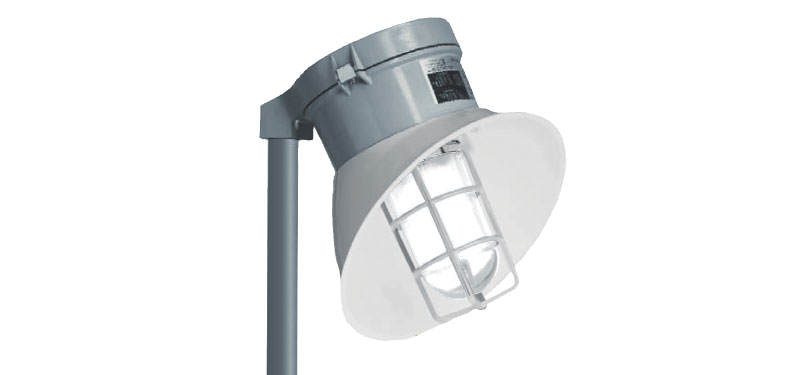

NVMV small enclosure, for pole mounting
- S5NJ 075 O 00
- S5NJ 105 O 00
- S5NJ 155 O 00
- S5NJ 255 O 00
- M5NJ 075 O 00
- M5NJ 105 O 00
- M5NJ 155 O 00
- M5NJ 255 O 00
NVMV large enclosure, for ceiling mounting
- S2MC 255 OL 0
- S2MC 405 OL 0
- M2MC 255 OL 0
- M2MC 405 OL 0
NVMV large enclosure, for wall mounting
- S2MW 255 OL 0
- S2MW 405 OL 0
- M2MW 255 OL 0
- M2MW 405 OL 0
NVMV large enclosure, for pole mounting
- S5NJ 255 OL 0
- S5NJ 405 OL 0
- M5NJ 255 OL 0
- M5NJ 405 OL 0
