FZD – Ex-Floodlights for high-pressure discharge lamps
Series FZD 04 / FZD EN
(Zone 1, 2, 21, 22)
Due to the spatial separation of the lamp module, lamp base and ballast, this powerful and robust spotlight for high-pressure discharge lamps can be installed and maintained in an easy and quick way. The Ex-e ballast enclosure with the compensation capacitor can be mounted within arm‘s reach. Only the light Ex-e enclosure made of copper-free aluminium for the ignitor is mounted at the desired mounting height of the floodlight and the Ex-d lamp module is simply plugged in and locked. This allows a one-man installation without a crane or other lifting tools.
Flexibility due to modular design
All the components of the modular Ex floodlight have been certified separately as components. The flameproof lamp module can be easily separated from the housing once the locking screw has been loosened. Two sealing systems in the degree of protection IP66 ensure permanently protected Ex-d contacts.
There is no need to switch off the mains voltage to separate the module from the luminaire
This means that a simple lamp change and easy cleaning of the lamp modules is possible, even outside the hazardous area. Optionally, the module can be fitted with narrow-angle and wide-angle reflectors – these can even be fitted retrospectively and without any additional installation work.
A special advantage
The simple and quick exchanging of the lamp module means that changing the lamp is not a problem, even under extreme weather or climate conditions (snow, ice, and particularly low ambient temperatures).
The compact version
The FZD EN combines easy lamp replacement with a compact enclosure. All components are protected in one Ex-d enclosure.
For extreme environmental conditions
The FZD 04 floodlight series with its maintenance-friendly replaceable lamp module and its large operating/ambient temperature range from -45 °C up to +45 °C is the ideal solution for illuminating large areas and plants in challenging climates.
- Easy lamp replacement due to the Ex-d lamp module
- Modular design of housing Ex-e/Ex-d
- High degree of protection IP 66
- Optional internal wide beam or narrow beam reflector
- Can be used in ambient temperatures as low as -45 °C
- CU-Certificate for Eurasian Economic Community available

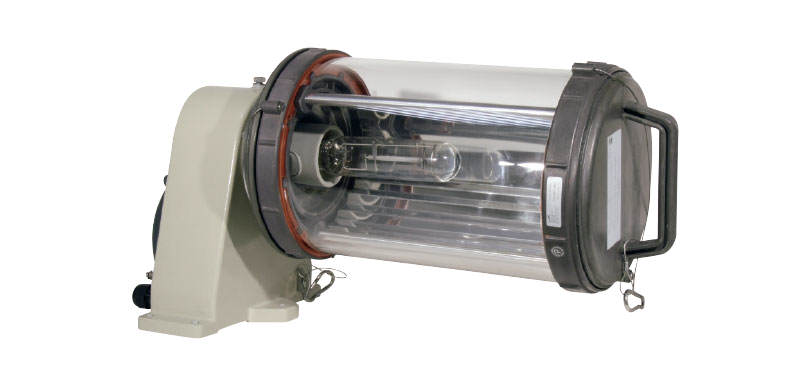

FZD 04 with cable gland
- FZD 04 250 W
- FZD 04 250 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 250 W
- FZD 04 250 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
FZD 04 without cable gland
- FZD 04 250 W
- FZD 04 250 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 250 W
- FZD 04 250 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
- FZD 04 400 W
FZD EN
- FZD EN 250 W
- FZD EN 250 W
- FZD EN 400 W
- FZD EN 400 W
- FZD EN 400 W
- FZD EN 400 W
