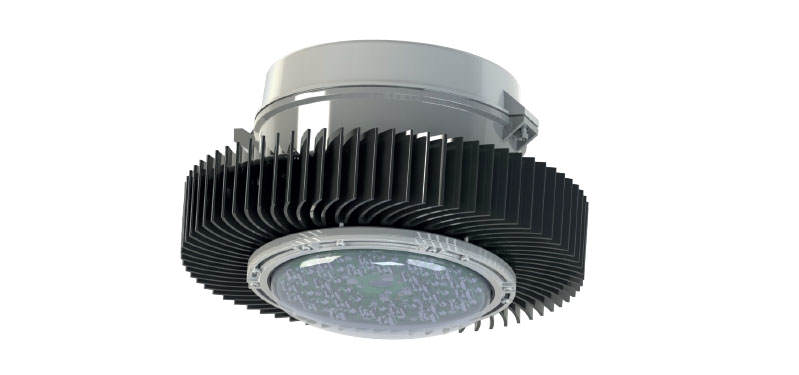

VMV LED lamp module with LEDs
Donat Czapski

Donat Czapski – I am at your disposal

+48 695 244 220

info@grupa-wolff.com

Design
Delivery
Installation
Service

We know the requirements of insurers

From ATEX AUDIT to protection implementation

We provide 24/7 service

Ex-Pendant light fittings and floodlights of the series VMV LED

(Zone 2, 21, 22)

The energy-saving VMV pendant light fittings and floodlights with LED technology are ideal for all general lighting applications in hazardous areas in Zone 2 and hazardous dust areas in Zones 21 and 22. With the integrated high-power LED technology, these lights can be used to replace comparable conventional light sources with an equivalent capacity of up to 1000 W.

LED technology for heavy-duty use

Due to the particularly solid construction of the housing and the vibration resistance of the LED module, the VMV floodlight is resistant to impact, shock and vibration. As a result, it represents the ideal lighting concept for use in areas with difficult environmental conditions. Thanks to the non-sensitive LED technology, even extreme temperatures from – 40 °C up to +65 °C are not a problem. The robust, powder-coated light metal housing in the degree of protection IP66 and the impact-resistant lens meet the highest corrosion protection and mechanical resistance requirements. The advantages of the integrated, advanced LED technology with a high luminous flux and, at the same time, an extremely low energy consumption are a long service life and a high level of efficiency. With a power consumption of 29 W to 232 W, it is ideal for replacing 70 W to 1000 W light fittings with high pressure lamps.

  • High power LED modules
  • Multiple drivers
  • High efficient heat sink design for optimized thermal management
  • Wide temperature range according to type from -40 °C up to +65 °C
  • High degree of protection IP66 for harsh environments
  • VMV LED 3L – 29 W Typ V
  • VMV LED 5L – 43 W Typ V
  • VMV LED 7L – 55 W Typ V
  • VMV LED 9L – 85 W Typ V
  • VMV LED 11L – 113 W Typ V
  • VMV LED 13L – 130 W Type V
  • VMV LED 17L – 168 W Type V
  • VMV LED 21L – 196 W Type V
  • VMV LED 25L – 232 W Type V
  • VMV LED 3L – 29 W Typ I
  • VMV LED 5L – 43 W Typ I
  • VMV LED 7L – 55 W Typ I
  • VMV LED 9L – 85 W Typ I
  • VMV LED 11L – 113 W Typ I
  • VMV LED 13L – 130 W Type I
  • VMV LED 17L – 168 W Type I
  • VMV LED 21L – 196 W Type I
  • VMV LED 25L – 232 W Type I
  • VMV LED 3L – 29 W Typ III
  • VMV LED 5L – 43 W Typ III
  • VMV LED 7L – 55 W Typ III
  • VMV LED 9L – 85 W Typ III
  • VMV LED 11L – 113 W Typ III
  • VMV LED 13L – 130 W Type III
  • VMV LED 17L – 168 W Type III
  • VMV LED 21L – 196 W Type III
  • VMV LED 25L – 232 W Type III
