Battery-powered system for controlling earthing of barrels, tanks, etc.

Newson Gale Bond-Rite REMOTE EP

The Bond-Rite system is used to earth portable/mobile plant components (barrels, tanks, etc.) in areas with a high risk of explosion and where high safety standards are required. In addition, this type of solution is also used in cases where the monitoring system diode mounted on self-testing clamps (Bond-Rite CLAMP or Bond-Rite EZ) can be obscured by e.g. deposited dust. The mains-powered system (Bond-Rite REMOTE EP) and the battery-powered system (Bond-Rite REMOTE) can be distinguished.

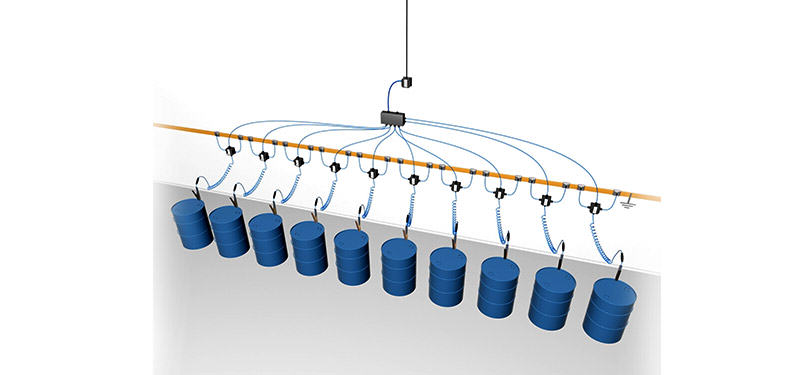

The mains-powered Bond-Rite REMOTE EP has a universal ER power supply in a GRP housing and an optional junction box that allows power distribution of up to 10 Bond-Rite units. The use of this system is recommended in situations where continuous earthing monitoring is required, e.g. in the case of a barrel warehouse, where the product is regularly taken from them.


If continuous monitoring of plant components is required, such as in the case of the barrel warehouse, where the product is regularly taken from them, it is recommended to use self-testing clamps powered from the mains with a “remote” diode indicator.

System components

  • monitoring unit available in two types of housing (plastic/stainless steel), equipped with a light signal (green and red LEDs) to inform the operator about the correct earthing,
  • clamp made of stainless steel, with sharp teeth to ensure penetration through a layer of rust, paint, varnish, etc.,
  • two-wire spiral cable in a hytrel casing of various lengths, protecting the cable against mechanical or chemical damage,
  • ER power supply in the GRP enclosure,
  • optionally, a distributor box.

Electrostatic Earthing – the offer

Earthing control systems

Earth control systems
with process lock (tanks, big bags)

You can use them in the field of earthing monitoring of e.g. road tankers, railways, big-bags, as well as components of process plants. Earth-Rite systems verify easily and safely that the stored loads are properly discharged to the ground through a monitoring unit with a signal lightning diode. If the earthing is not performed properly, the controllers block the process.

Multiple elements earthing control system

Multiple elements
earthing control system

The MULTIPOINT II system is a device designed to control the earthing of up to 8 self-acting or interconnected system components at the same time. According to the guidelines of international standards for the control of unwanted static discharges, the correctness of earthing will only be confirmed by the system if the resistance of the earthing node on each channel is less than 10 Ω.

Clamps with earthing control

Clamps with earthing control
(IBC tanks, drums, big-bags)

We can offer you clamps with monitoring the state of earthing of barrels, tanks, etc. These solutions, in addition to earthing the equipment operating in production rooms, by means of a monitoring unit with a signalling diode, easily and safely verify that the charges accumulated on the equipment are properly discharged to earth.

Simple earthing clamps for single- and two-core cables

wires, spools

Earthing clamps can be used in two configurations – as a set of two simple clamps connected with each other by a spiral cable, or as a connection of the clamp to a earthed container and a ring clamp, which is located at the end of the cable, to a earthing strip.

Shoe inspection stations Ex ATEX

Shoe inspection
stations Ex ATEX

The electrified human body is one of the most serious sources that pose a fire or explosion hazard in industrial conditions. An example of a solution that checks footwear for its ability to dissipate electrostatic charges before an employee enters an area with flammable atmospheres is the Sole-Mate shoe control system.
