Ex-emergency luminaires

Planete 400 AD DL LED emergency lighting luminaire
with a self-contained battery system made of metal for Zone 1 and 21
AB 12108-EVG safety luminaire made of metal for Zone 1 and 21
EE 11 PL emergency lighting luminaire with a self-contained battery system made of metal for Zone 1 and 21

With its robust flameproof enclosure made of copper-free aluminium (Cu < 0.1%), the high degree of protection IP67 and the protective tube made of borosilicate glass with high mechanical and thermal resistance, this luminaire series is ideal for use in areas with adverse environmental conditions.

Central monitoring

The Ex luminaire AB 12108-EVG is equipped with an electronic ballast and with an 8-W fluorescent lamp for mains and emergency lighting. With the optional built-in V-CG-S monitoring module with coding switch for max. 20 addresses, this luminaire can also be used as an individually monitored emergency lighting luminaire that is connected to a CEAG emergency lighting supply system. With this, the operator can programme the switching mode according to the respective requirements. Thus, as many as 20 luminaires with different switching modes can be connected to one end circuit.

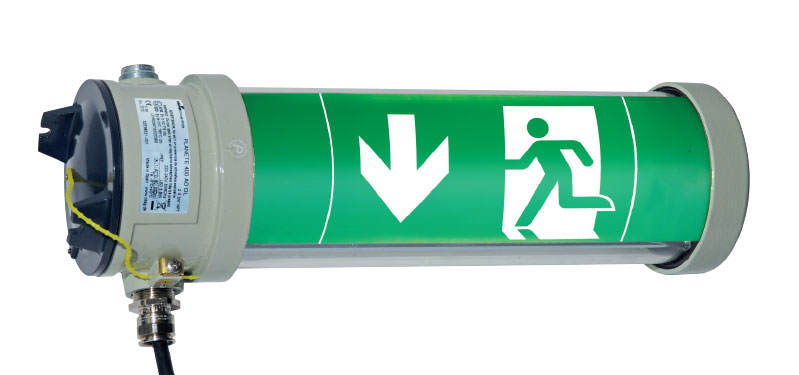

LED emergency lighting luminaires with a self-contained battery system

The new Planete 400 AD DL completes our lighting portfolio with a robust light fitting in modern LED technology. An integrated micro-processor monitors the automatic function and duration test and green and yellow LEDs indicate the lighting status. The Planete 400 AD DL is equipped with 32 LEDs and ensures emergency duration of more than an hour. During mains supply (maintained operation) all LED will be on with reduced light output.

The classic solution for decentralized use

The Ex light fitting EE 11 PL with a self-contained battery system is fitted with an 11 W compact fluorescent lamp and is suitable for non-maintained operation. It has an additional 3 W for permanent lighting and is designed for a 1.5 hour emergency lighting duration. The charge status and the mains supply are also indicated by LEDs. The housing is made of a copper-free aluminium and has a borosilicate glass tube. They are used for illuminating emergency exit routes, as well as an emergency light fitting for the identification of exits.

  • Housing made of copper-free aluminium with a borosilicate glass tube
  • High degree of safety IP67
  • 8 W fluorescent lamp for main and emergency lighting (AB 12 108-EVG)
  • Maintenance-free LED illuminant with long lifespan (Planete 400)
  • 11 W compact fluorescent lamp for emergency lighting (EE 11 PL)
  • Operation and monitoring possible from CEAG emergency lighting system
  • Planete 400 AD DL
  • Planete 400 AD DL
  • AB 12108-EVG
  • EE 11 PL 220 – 240 V, 1.5 h
  • EE 11 PL 108 – 127 V, 1.5 h
  • EE 11 PL 220 – 240 V, 1.5 h
  • EE 11 PL 108 – 127 V, 1.5 h

Ex lighting – offer

Industrial Lighting
Design

We specialize in industrial lighting, with a particular focus on facilities where there is: dust, corrosive atmosphere, explosion and fire hazards.

AB 05 LED EX ATEX

Ex-Ceiling pendant light fittings and floodlights

Mainly used in explosion-hazard areas, in both land and marine installations, in storage buildings, production halls, and chemical industry facilities.

Ex-linear light fittings

They are made of high-quality plastic with excellent mechanical properties and high resistance to chemicals.

Ex LED lighting

Our light fittings combines the latest LED technology with the protection of a reliable housing solution. As a result, they are the ideal solution for lighting tasks in harsh and hazardous environments.

Ex-escape sign luminaires ATEX

Ex-Signal and escape sign luminaires

The EXIT series of explosion-protected escape sign lumi­naires fulfils the requirements of ATEX Directive 2014/34/EU and EN 60598, Section 2.22 for emergency lighting lumi­naires. The luminaires are suited for marking escape routes and exits in hazardous areas.
