Manual call points EX ATEX

Manual call points (MCP) BG2 / SM87 / BG3 have been designed in accordance with the PN-EN 54-11 Polish Standard regarding fire alarm systems – Part 11: Manual call points, as well as the basic requirements of the ATEX Directive (94/9/EC). They may be used in zones 0, 1, and 2 as well as 21 and 22 explosion hazard zones (depending on the version).

Manual call points are resistant to unfavourable weather conditions with IP66 and IP67 protection class. They are available as certified intrinsically save devices or non-certified devices. The casing of the manual call points is made of glass-reinforced polyester (GPR), which ensures durability and corrosion resistance as well as efficient and reliable operation in heavy-duty industrial conditions. The devices are supplied in natural colour or painted to customer specification. The BG3 “Burning House” label is a standard option, other labels may be applied at customer request.

Designed in accordance with the Polish Standard PN EN 54-11
IP66/IP67 protection class
Operating temperatures between -40°C and +70°C
Anti-corrosion plastic reinforced with glass fibres (GPR)
Optional circuit/final resistors/diodes
Optional LED indicators
Optional flap
Optional glass-like element
Key-protected tests
Available in various colours

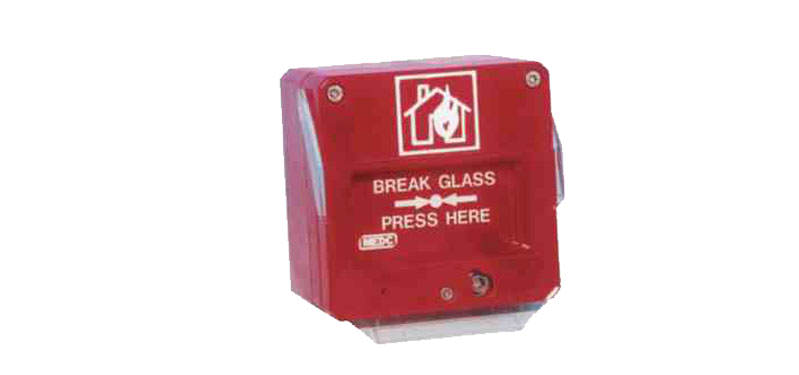

Model BG2 E/I

Link to download the product sheet:


Ex Electrical Equipment – offer

GRP Ex Terminal Boxes HARDO


Increased insulation clearances of built-in components, high IP rating of enclosures, temperature restrictions, use of certified components and certified electrical equipment.

aluminum control stations hardo


The offered control stations and panels can be operated even under extreme industrial conditions. Our enclosures are resistant to corrosion and the effects of aggressive chemicals.

Explosion-proof cable glands for armored cables HARDO

EX Cable

Ex cable glands are used wherever a properly protected connection of armored or non-armored cable to machinery or equipment is required.

eXLink - the Miniature-Power Connector


ATEX certified round plugs and receptacles – contact-making insert can be arranged in various positions

Our own

Guaranteed high quality due to total control over the product at each stage of the manufacturing process. Quick implementation due to shorter lead times for non-standard solutions
