Fixing systems for installing luminaires

Stability and material

A specially developed shaping method that ensures a high degree of stability is used for this programme. Stainless steel with optimised material strength is used in environments with aggressive media. Components that are not made of stainless steel are hot-dip galvanised after manufacture in accordance with DIN EN ISO 1461.

Assembly

The assembly systems have been designed for inside and outside areas. The compact system kits can be assembled by just one person in a very short time. All individual parts are simply fitted together and fastened by screws. Since there is no need for drilling or welding, it is possible to work in hazardous areas without a „hot work permit”.

Safety

The assembly system is always installed from the safe side of the work platform, i.e. without scaffolding! The specified handrail height and the avoidance of protruding metal parts or screws in the construction provides a high standard of safety.

Cost-saving maintenance

The use of tilting luminaire masts results in decisive cost advantages due to minimised maintenance. Thus, for example, changing a lamp without scaffolding or assembly aids is possible for just one person in a very short time. The costs for cleaning and repair work can also be minimised.

• Easy to install
• Corrosion protected (stainless steel or hot-dip galvanized)
• Extra solid construction ensures high wind load resistance

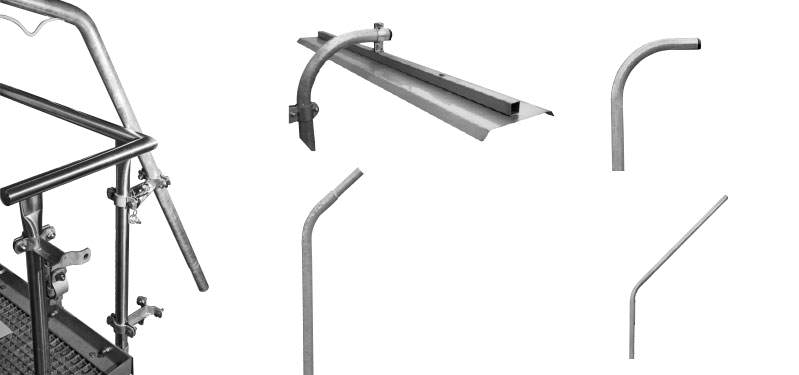

Pole-system bent 90°

• Light pole, 90° bend and drilling hole f. LTR 48 and LTRS 48: type LM 48 – 2300/300 – FT, hot-dip galvanized
• Light pole 90° bend and drilling hole f. LTR 48 and LTRS 48: type LM 48 – 1900/300 – FT, hot-dip galvanized
• Light fitting support pipe with cable outlet: type LTR 48 – 600 – FT, hot-dip galvanized
• Light fitting support pipe with cable outlet: type LTR 48 – 1200 – FT, hot-dip galvanized
• Light fitting support pipe with cable outlet: type LTR 48 – 1500 – FT, hot-dip galvanized
• Light fitting support pipe clamp 90° twisted: type LTRS 48 – FT, hot-dip galvanized

Pole-system bent 45°

• Light pole, 45° bend, for pole-mounting light fittings: type LMZ 48 – 1900/190 – FT, hot-dip galvanized
• Light pole, 45° bend, , e.g. for floodlights: type LM 48 – 1900/190 – FT, hot-dip galvanized
• Light pole whip form, 45° bend: type LMP 48 – 1900/1300 – FT, hot-dip galvanized
• Light pole whip form, 45° bend: type LMP 48 – 2100/1300 – FT, hot-dip galvanized
• Light pole whip form, 45° bend: type LMP 48 – 2100/800 – FT, hot-dip galvanized
• Wall-mounted light pole whip form, 45° bend, with cable outlet: type LMW 48 – 500/1300 – FT, hot-dip galvanized
• Wall-mounted light pole whip form, 45° bend, with cable outlet: type LMW 48 – 500/800 – FT, hot-dip galvanized
• Light pole fixture for wall mounting, set 2 pcs.: type LMHW 48 – FT, hot-dip galvanized

Light pole clamp

• Light pole clamp, fixed, UMHS 48/48 – FT, hot-dip galvanized
• Light pole clamp, fixed, with pole slip protection UMHSD 48/48 – FT, hot-dip galvanized
• Light pole clamp, swivel, with pole slip protection, UMHK 48/48 – ER, stainless steel
• Light pole clamp, fixed, UMHS 48/48 – ER, stainless steel
• Light pole clamp, fixed, with pole slip protection UMHSD 48/48 – ER, stainless steel
• Light pole clamp, swivel, with pole slip protection, UMHK 48/48 – FT, hot-dip galvanized

End caps for poles and pipes

• End cap with cable outlet Ø 15 mm: type SEL 48 – K, plastic
• End cap closed: type SEG 48 – K, plastic
• End cap open: type SEO 48 – K, plastic

Canopy for fluorescent light fittings

• Canopy for fluorescent light fittings 18 W LSD 1200 – ER 1200 mm length, hole spacing: 400 mm
• Canopy for fluorescent light fittings 18 W LSD 1600 – ER 1600 mm length, hole spacing: 700 mm

Pipe clamps

• 2 pcs. pipe clamps R12 (1 1/4”), Ø 38 – 42 mm with screws and polyamide washer, hot-dip galvanized
• 2 pcs. pipe clamps R14 (1 1/4”), Ø 38 – 42 mm with screws and polyamide washer, stainless steel
• 2 pcs. pipe clamps R22 (1 1/2”), Ø 47 – 51 mm with screws and polyamide washer, hot-dip galvanized
• 2 pcs. pipe clamps R24 (1 1/2”), Ø 47 – 51 mm with screws and polyamide washer, stainless steel
• 2 pcs. pipe clamps R32 (2”), Ø 56 – 60 mm with screws and polyamide washer, hot-dip galvanized
• 2 pcs. pipe clamps R34 (2”), Ø 56 – 60 mm with screws and polyamide washer, stainless steel
• 1 pcs. pipe clamp A8 (1 1/2″) D 47 – 51 mm for AB 12.. with screws and polyamide washer, hot-dip galvanized
• 1 pcs. pipe clamp A9 (2″) D 56 – 60 mm for AB 12.. with screws and polyamide washer, hot-dip galvanized
• 2 pcs. pipe clamp, two-part, for pipe mounting LB 48 – FT with screws and polyamide washer, hot-dip galvanized

Fixing accessories

• 2 pcs. luminaire mounting bracket with 30° angle, wall mounting LH 30 – FT, hot-dip galvanized
• 2 pcs. luminaire mounting bracket with 45° angle, wall mounting LH 45 – FT, hot-dip galvanized
• 2 pcs. wall mounting bracket with 30° angle, with screws and polyamide washer, hot-dip galvanized
• 1 pcs. wall bracket 45° with screws and polyamide washer, hot-dip galvanized
• 1 pcs. wall bracket W 27, 15°, for pole-mounting fitting Ø 42 mm, hot-dip galvanized
• 2 pcs. ceiling mounting bracket D 92 with screws and polyamide washer, stainless steel
• 1 pcs. ceiling mounting bracket A5 with screws and polyamide washer, hot-dip galvanized
• 2 pcs. C-bracket for luminaire mounting LAB-C50 – ER, stainless steel
• 2 pcs. hexagon screw M8 x 20 for luminaire mounting, with polyamide washer
• 2 pcs. eye bolt M8 for luminaire mounting, hot-dip galvanized
• 2 pcs. eye bolt M8 for luminaire mounting, stainless steel
• 1 pcs. eye bolt M8 – A1 for luminaire mounting, hot-dip galvanized
• Hexagon box spanner SW 13 for opening/closing fluorescent light fittings eLLK/M and nLLK/M
