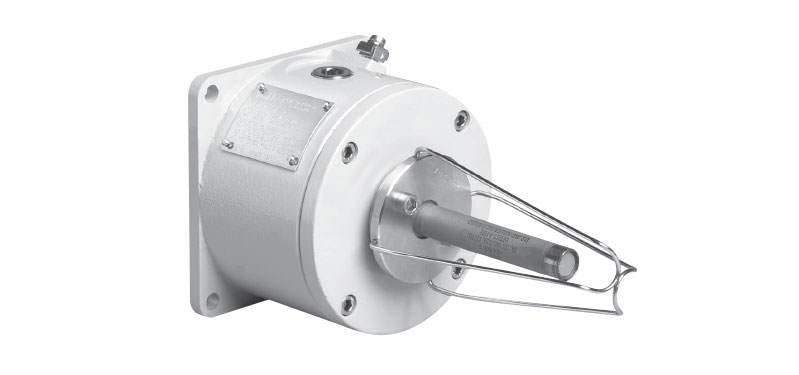

Heat detector EX ATEX

The MEDC-Hawco heat detector has been designed for use in explosion hazard zones. The detectors are fit for use in fire safety systems (alarm and prevention ones) both on land and at sea and to be installed in painting booths, flammable materials warehouses, turbine chambers, ducts, and other hazard areas in the oil-and-gas, petrochemical and processing industries.

Description

The detector comprises a balanced sensor by Fenwal, with stainless steel external structure, placed in a stainless alloy casing in the SM87 model (Ex d version) or antistatic glass reinforced polyester casing in the IB10 model (Ex ia or Ex em versions). The contacts of the detector short circuit during the temperature alarm.

Basic characteristics

IP66/IP67 protection class
Certified operating temperatures: between -20°C and +125°C (Ex d); between -20°C and +55°C (Ex em); between -55°C and +55°C (Ex ia)
Stainless steel probe
Detector temperature settings: between 60°C and 385°C
Casing of stainless steel or glass reinforced polyester
Optional protective mesh

Available models

HD 1

Download – product sheet

Link to download the product sheet:
