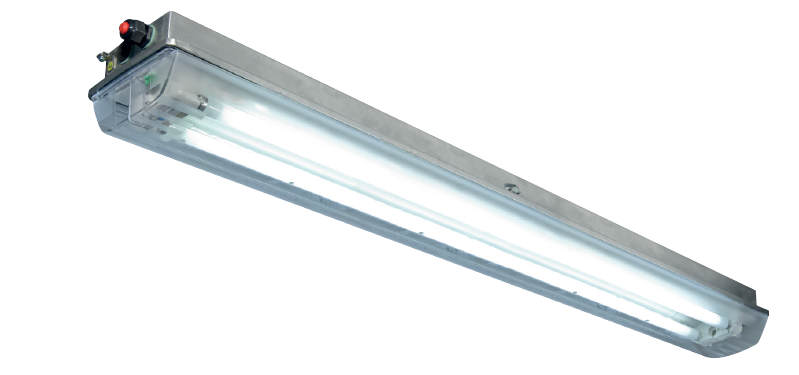

Ex-Linear light fittings made of stainless steel

eLLS 08018/18 / eLLS 08036/36 / eLLS 08018/18 NE / eLLS 08036/36 NE

(Zone 1, 2, 21, 22)

The light fitting series eLLS 08 combines the latest lighting technology with a robust construction. Thanks to a new charging and monitoring technology with intelligent microelectronics, the NE emergency lighting luminaires provide reliable safety and reduced maintenance costs. Because they are made of high-grade, seawater-resistant stainless steel, they are extremely robust and resistant to aggressive chemical environments and are therefore, ideal for all hazardous areas with extreme ambient conditions.

Long-term safety

The luminaires are equipped with a two-channel electronic ballast that features a reliable EOL circuit. Thus, the lamps are checked for proper operation and shut down safely in the event of a malfunction at the end of their service life. With the NE-version a function test is carried out automatically on a weekly basis and a quarterly, partial duty-cycle test. These tests provide additional safety and drastically reduce the necessary amount of manual tests. The charging and discharging functions are monitored constantly by the micro-processor.

Simple and cost-effective installation

In conjunction with the generously dimensioned terminal compartment, the standard single-ended through-wiring allows a cost-effective installation. The double-sided locking facility with 10 or 20 latch points allows the protective bowl to be hinged on both sides, meaning that the fitting can be mounted on either side.

  • High-grade, seawater-resistant stainless steel housing
  • Cost efficient installation due to single-ended through-wiring
  • Dual channel ballast with EOL monitoring
  • Automatic function test and partial duty cycle test (NE)
  • LED display for indication of the charging, operation or fault status (NE)
  • Easy replacement of battery, even in Ex-area (NE)
  • High degree of protection IP66
  • eLLS 08018/18
  • eLLS 08036/36
  • eLLS 08018/18 NE
  • eLLS 08036/36 NE
