Ex-emergency luminaires

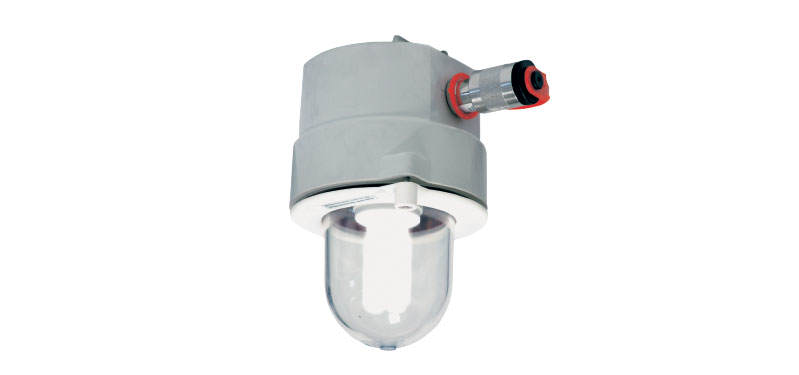

dKLK 23 / dKLK 23 LED

Plastic design for Zone 1 and 21

These light fittings meet the requirements of ATEX-Directive 2014/34/EU for temperature class T6. They are certified for use in hazardous areas in Zones 1 and 2 with a temperature class up to T6, as well as for explosive dust atmospheres in Zones 21 and 22. What is more, they also meet the requirements in accordance with EN 60598, Part 2.22 for emergency lighting.

Securing and signalling

These light fittings meet the requirements of ATEX-Directive 2014/34/EU for temperature class T6. They are certified for use in hazardous areas in Zones 1 and 2 with a temperature class up to T6, as well as for explosive dust atmospheres in Zones 21 and 22. What is more, they also meet the requirements in accordance with EN 60598, Part 2.22 for emergency lighting.

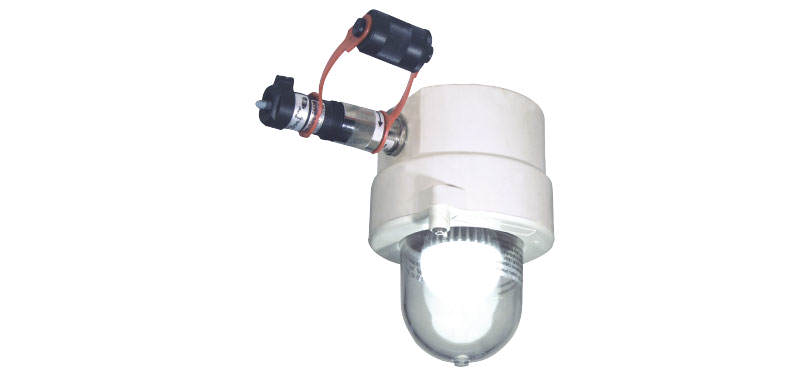

The Ex light fittings dKLK 23 are suited for compact fluorescent lamps with an integrated electronic ballast and outputs of 5-8 W. If a flash module is fitted in the housing (optional), the light fitting can be used also as a strobe light. The dKLK 23 LED version is supplied with a 6 W LED lamp.

This combines the innovative LED technology with main features, such as:

  • Energy saving
  • Environmentally friendly because mercury free
  • Long service life
  • Cost-saving due to long maintenance intervals
  • Ideally suited for intermittent operation as flashing light

The housing is made of a fibre-glass reinforced polyester and the protective globe of a transparent or coloured poly­carbonate. When fitted with coloured protective cover, they are also used as signal lights. In combination with the exit cubes, they are used as emergency lighting luminaires.

The luminaire is connected using a flameproof eXLink coupler plug or via a flameproof cable gland. With the optional V-CG-S monitoring module with coding switch for max. 20 addresses, they can be connected as individually monitored emergency lighting luminaires to the CEAG emergency lighting supply system (dKLK 23 V-CG-S).

  • Signal light fitting, also with coloured protective globe, for use in environments in temperature class T6
  • For compact fluorescent lamps with integrated EVG
  • Optionally, LED-lamp
  • For ceiling and wall mounting
  • High degree of protection IP66
  • Connection to the CEAG emergency lighting supply systems with individual monitoring possible
  • Optional flash module
  • dKLK 23/eXLink
  • dKLK 23/eXLink
  • dKLK 23/eXLink
  • dKLK 23/eXLink
  • dKLK 23 V-CG-S /eXLink 1)
  • dKLK 23/Ex d
  • dKLK 23/Ex d
  • dKLK 23/Ex d
  • dKLK 23/Ex d
  • dKLK 23 V-CG-S /Ex d 1)
  • dKLK 23 LED/eXLink
  • dKLK 23 LED/eXLink
  • dKLK 23 LED/eXLink
  • dKLK 23 LED/eXLink
  • dKLK 23 LED/Ex d
  • dKLK 23 LED/Ex d
  • dKLK 23 LED/Ex d
  • dKLK 23 LED/Ex d
