nLLK 15 LED Ex-Linear Light Fitting

Linear Light Fitting with LED Tubes

(Zone 2 and 22)

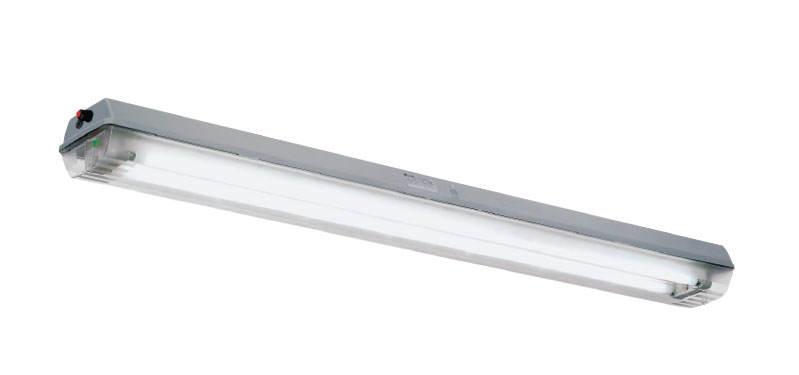

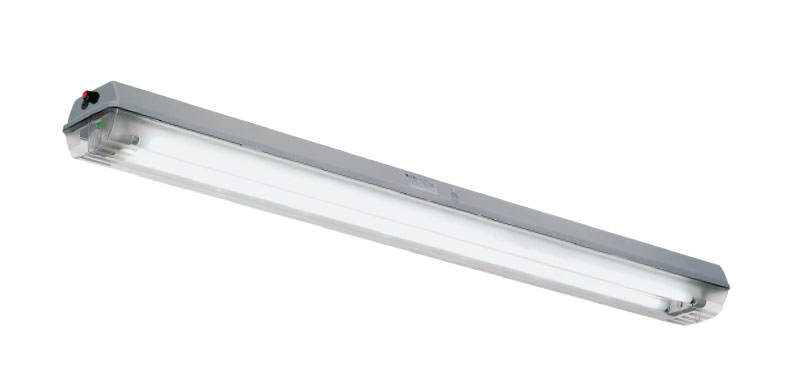

The series of light fittings nLLK 15 LED for Aura UltiLED (Pro) long life LED tubes combines latest lighting engineering with the requirements of harsh and hazardous environments. The explosion protected luminaires are approved for use in gas- and dust-Ex-areas fulfilling the requirements of the ATEX directive 2014/34/EU. They are designed and tested according to the latest standards for Ex-equipment for use in Zone 2 gas Ex-areas and Zone 22 of dust Ex-areas. The nLLK 15 LED luminaries are helping to increase your safety and save energy. The clear energy saving and the higher quality of lighting are made by use of Aura UltiLED (Pro) long life LED tubes in combination with a special designed electronic driver that will sustainably reduce your cost of operations.

Easy and economically to install

The standard single-sided through-wiring architecture in conjunction with the generously large terminal compartment offers a cost efficient installation. Double-sided lock with latch points allows the protective bow to be hingeable on both sides meaning the fitting can be mounted without having to pay attention to which side is the correct side.


The series of light fittings nLLK 15 LED optionally is also available with integrated light switch. This switch automatically ensures the all-pole disconnection from mains of the open light fitting. Via the optional DALI interface the light fittings individually can be controlled and dimmed.

  • High Efficient & Energy saving LED technology
  • Cost efficient installation due to single sided through wiring
  • Easy maintenance by double sided safety lock
  • High lumen output
  • High degree of protection IP 66
  • nLLK 15 LED 600
  • nLLK 15 LED 1200
  • nLLK 15 LED 1500
