Radiator heater | ATEX gas zones | FAW type

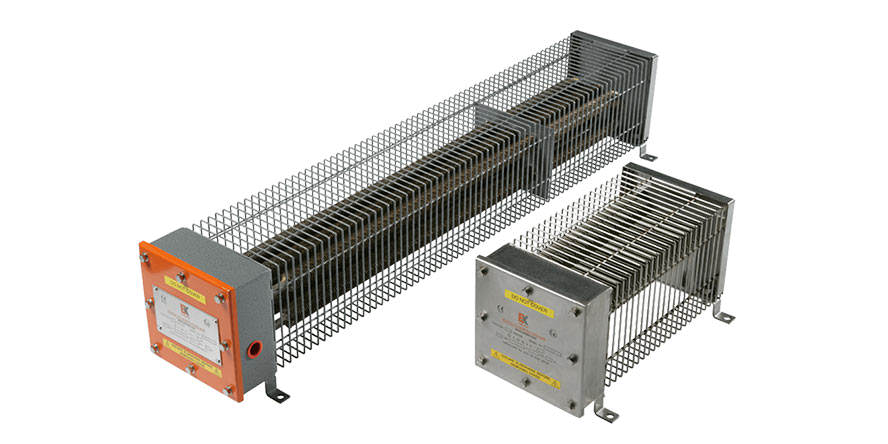

The FAW radiator heater is ATEX, IECEX and CAS certified for installation in indoor spaces (in the standard version) or inside switchgear and controlgear cabinets (in the compact version). The products are intended for indoor heating of workplaces in warehouse buildings, hangars, processing plant rooms and similar locations where explosive gas atmosphere is present. The space heaters can be optionally provided with ATEX-certified thermostat controls. The space heaters can be installed on the floor or suspended above it.
The FAW radiator heaters are ATEX-certified for operation in Ex Zones 1 and 2 (with flammable gases and liquid vapours). This series of space heaters can be used in small enclosed spaces, like cabinets of switchgear and control gear, or larger indoor locations, including warehouse buildings, hangars, or processing plant rooms. The products are compatible with single or three-phase alternating current or direct current supply systems.
The space heaters are lightweight for easy installation on the floor (with the included feet) or wall mounting (with optionally available fixtures). The space heaters can be optionally ordered with Ex-proof remote thermostat controls.
The main components are made of powder-coated stainless steel grade 316L and 304. The heating element is protected with a mesh guard. The standard product is supplied with a 20 mm cable gland. More cable glands can be provided on request. The permitted ambient operating temperature of the space heaters ranges from -60˚C to +60˚C.
- ATEX: certified for operation in potentially explosive gas or dust atmospheres (Zone 1 and 2)
- Installation: floor (with included feet) or wall (with optional fixtures)
- Rated power: 250 W to 3 kW
- Single-phase input voltage: 110-120 V and 220-254 V
- Three-phase input voltage: 380-440 V
- Main component material(s): stainless steel grade 316L / 304 with powder coat finish
- Control: Ex-proof remote thermostat control (optional)
- Ingress protection: IP67
- Ambient temperature: -60˚C to +60˚C
| Model | Power [W] | Voltage [V] | Supports | A [mm] | B [mm] | C [mm] | Weight [kg] | Temperature class |
|---|---|---|---|---|---|---|---|---|
| Compact Range | ||||||||
| FAW-C-250 | 250 | 240 or 110 | 2 | 350 | 160 | 282 | 5 | T2/T3 |
| FAW-C-500 | 500 | 240 or 110 | 2 | 350 | 160 | 282 | 6 | T2/T3 |
| FAW-C-750 | 750 | 240 or 110 | 2 | 615 | 160 | 545 | 6 | T2/T3 |
| FAW-C-1000 | 1000 | 240 or 110 | 2 | 615 | 160 | 545 | 9 | T2/T3 |
| Standard Range | ||||||||
| FAW250 | 250 | 240/254 or 110 | 2 | 971 | 160 | 860 | 8 | T2/T3 |
| FAW500 | 500 | 240/254 or 110 | 2 | 971 | 160 | 860 | 10 | T2/T3 |
| FAW750 | 750 | 240/254/415/440 or 110 | 2 | 971 | 160 | 860 | 12 | T2/T3 |
| FAW1000 | 1000 | 240/254/415/440 or 110 | 2 | 1221 | 160 | 1145 | 14 | T2/T3 |
| FAW1500 | 1500 | 240/254/415/440 or 110 | 3 | 1741 | 160 | 1640 | 20 | T2/T3 |
| FAW2000 | 2000 | 240/254 or 110 | 4 | 1741 | 272 | 1640 | 32 | T2/T3 |
| FAW2000-SB | 2000 | 240/254/415/440 or 110 | 3 | 1221 | 272 | 1145 | 34 | T2/T3 |
| FAW2500 | 2500 | 240/254 | 4 | 1741 | 272 | 1640 | 38 | T2/T3 |
| FAW3000 | 3000 | 240/254/415/440 | 4 | 1741 | 272 | 1640 | 42 | T2/T3 |
| FAW250 | 250 | 240/254 | 3 | 1886 | 160 | 1784 | 13 | T4 |
| FAW500 | 500 | 240/254 | 3 | 1886 | 160 | 1784 | 17 | T4 |
| FAW750 | 750 | 240/254/415/440 | 3 | 1886 | 160 | 1784 | 21 | T4 |
| FAW1000 | 1000 | 240/254 | 4 | 1886 | 272 | 1784 | 33 | T4 |
| FAW1250 | 1250 | 240/254 | 4 | 1886 | 272 | 1784 | 38 | T4 |
| FAW1500 | 1500 | 240/254/415/440 | 4 | 1886 | 272 | 1784 | 42 | T4 |
- Ex-proof thermostat
- Optional materials on request
- Wall mounting fixtures
- Heating of indoor workspaces, indoor storage rooms, and switchgear / controlgear cabinets in Ex-zones
- Aircraft hangars
- Fuel service locations
- Chemical plants
- Offshore
- Battery storage areas
- Gas plants
- Coat / solvent storage rooms
- Enclosures and cabinets
- ATEX / IECEx
II 2 G - Ex e IIC T2 to T4 Gb – 1 i 2 Zone (IP67)
- CSA
- CU TR (EAC) i KGS
