Switchgear cabinet and enclosure heaters | ATEX gas / dust zones | FX / HEF
A range of heaters for electric enclosures operated in Ex Zones 1 and 2 (potentially explosive gas or vapour atmospheres), as well as 21 and 22 (potentially explosive dust atmospheres). The products are available with ATEX, IECEx, CSA, and CU TR (EAC) certification. The maximum heater power output varies between the models and ranges from 45 W to 500 W. Each heater is made of a hard aluminium alloy with anodized finish to make it durable in industrial and offshore settings. The heaters are designed to operate with 110-277 V single-phase power. Selected models of the heater series can work with self-regulation to adapt the heat output to ambient temperature changes.

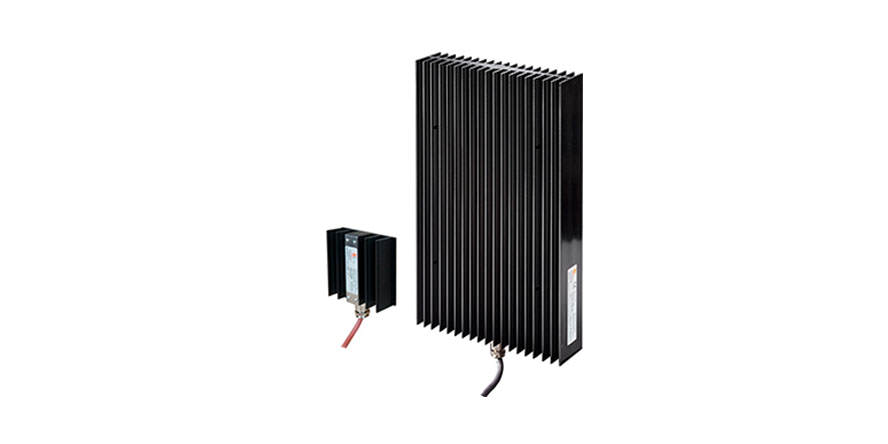

The FX heaters are compact and efficient heating units for small and medium enclosures and control cabinets operated in Ex-zones with potentially explosive gas, vapour and dust atmospheres. The products are ATEX-certified for installation in Zone 1, 2, 21, and 22. The heaters are available in a variety of forms (including cylindrical, flat-panel, semi-circular or angled).
The FX heaters are available in the following versions:
The heaters for electrical enclosures and cabinets are made from anodized, hard aluminium alloy for durability in industrial and offshore applications.
Self-regulating heaters
The FX heaters for electrical enclosures and cabinets are available in a self-regulating version which adapts the heat output to ambient temperature changes. These versions require no additional thermostat controls and unlike fixed output heaters, they can be installed in any orientation. This version of electric heaters is supplied with installation fixtures for mounting to an enclosure or cabinet wall or a standard mounting rail. The FXH-SR heater is a flat-panel version for direct attachment to the heated component.
The self-regulating heaters require ambient conditions which are strictly maintained within specified limits. If, for example, the enclosure or cabinet houses another heat source which might exceed the ambient temperature limits, the self-regulating heater might require an additional thermostat control.
Fixed output heaters
Each fixed output heater features a self-regulating cartridge heating element to provide a controlled heating solution for small and medium enclosures and cabinets. The self-regulating heating elements vary the heat output with the ambient temperature which makes external thermostat control obsolete. The FX self-regulating heaters for electrical enclosures and cabinets are certified for operation at ambient temperatures between -60°C and +180°C in temperature class T3 applications and -60°C and +130°C in temperature class T4 applications.

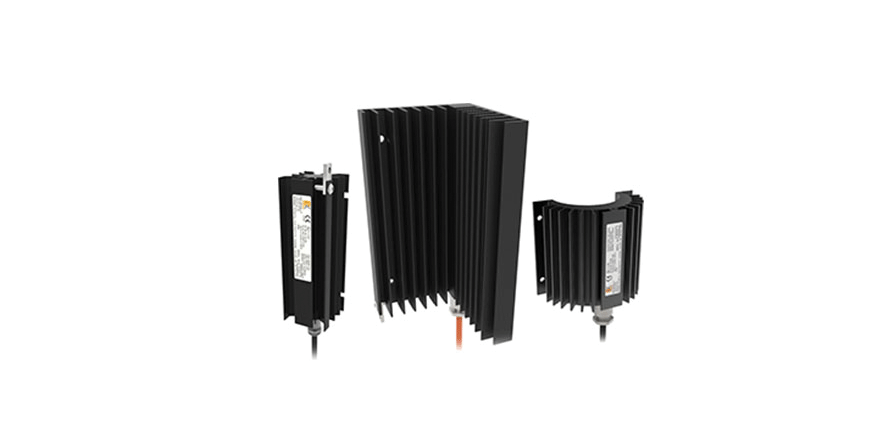

FXB-SR: heaters with double-sided ribbed radiators; unlike stationary heaters, there is no specific installation orientation required (note: the upright installation will provide the maximum heat output). The heaters are supplied with a single installation fixture for mounting directly to an enclosure or cabinet wall or a standard mounting rail.
FXH-SR: heaters with a single flat radiator side for a great flexibility of application. The heaters can be installed in any orientation and in direct contact with the heated component.
FXE: heaters with small, cylindrical ribbed radiators and intended for vertical, upright installation only. The heaters are supplied with a single installation fixture for mounting directly to an enclosure or cabinet, a bracket or a terminal strip mounting rail.
FXS: self-regulating heaters which can be installed upright or other orientations. An FXS heater can be installed horizontally or at an angle in an enclosure or cabinet, or directly on the heated component.

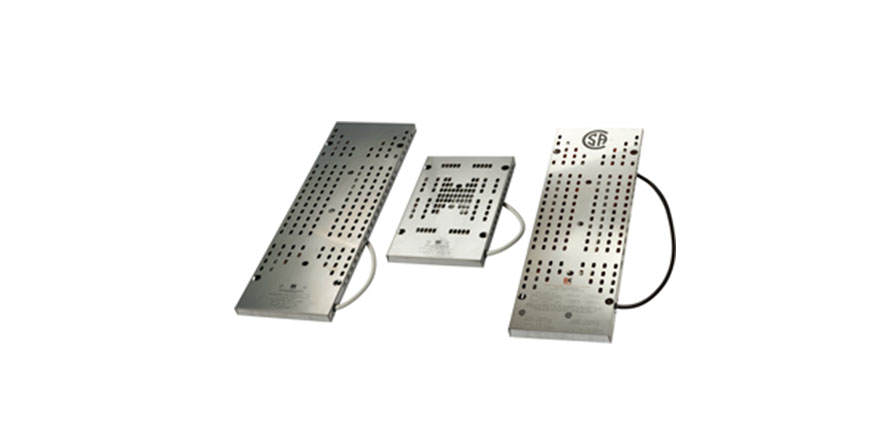

HEF: the only enclosure / cabinet heater made from stainless steel (grade 316). This model can be installed in upright or another orientation, and adjacent to the heated components (with a minimum clearance of 100 mm).
FX
- ATEX: certified for operation in potentially explosive gas or dust atmospheres (Zone 1, 2, 21, and 22)
- Installation: in enclosures / cabinets or directly on the heated component (depending on the model type)
- Rated power: 45 W to 500 W
- Single-phase input voltage: 110-277VAC
- Casing material(s): anodized shaped aluminium body
- Control: self-regulating (optionally available with Ex-proof thermostat control on request)
- Ingress protection: IP66
- Ambient temperature: -60 to +180°C
HEF
- ATEX: certified for operation in potentially explosive gas or dust atmospheres (Zone 1, 2, 21, and 22)
- Installation: in enclosures / cabinets or directly on the heated component (depending on the model type)
- Rated power: 30W, 50W, 100W, 200W, 500W
- Single-phase input voltage: 110-120V or 230-240V (254V available on request)
- Casing material(s): Stainless steel grade 316
- Control: self-regulating (optionally available with Ex-proof thermostat control on request)
- Ingress protection: IP66
Ambient temperature: -60 to +80°C (-55 C to +80°C in CSA-certified models)
FXH-SR
Model | Power [W] | Temperature class | Weight [kg] | Dimensions (height / width / depth) [mm] |
---|---|---|---|---|
FXH-SR | 50W | T4 | 0.7kg | 90/95/30 |
80W | T3 | 0.7 kg | 90/95/30 | |
100W | T4 | 2.1 kg | 225/206/30 | |
200W | T3 | 2.1 kg | 225/206/30 |
FXB-SR
Model | Power [W] | Temperature class | Weight [kg] | Dimensions (height / width / depth) [mm] |
---|---|---|---|---|
FXB-SR | 130W | T4 | 3.2 kg | 225/203/72 |
220W | T3 | 3.2 kg | 225/203/72 | |
240W | T4 | 4.5 kg | 325/203/72 | |
350W | T3 | 4.5 kg | 325/203/72 |
HEF
Model | Power [W] | Temperature class | Weight [kg] | Dimensions (height / width / depth) [mm] |
---|---|---|---|---|
HEF30 | 30W | T4 | 0.4kg | 73/130/23 |
HEF50 | 50W | T4 | 1.0kg | 100/266/23 |
HEF100 | 100W | T4 | 1.5kg | 180/290/23 |
HEF200 | 200W | T4 | 3.0kg | 180/550/23 |
HEF500 | 500W | T4 | 6.5kg | 340/700/23 |
- Ex-proof thermostat control
- Custom length power lead (up 10 m long)
- Heating of controller cabinets operated in potentially explosive atmopheres
- Anti-condensation heating
- Control and monitoring panels
- Fire protection equipment cabinets
- Power generators
- Manifolds / headers
- Soundproof enclosures
- Control valve cabinets
- Frost protection
- Automation cabinets
- Motor housings
- Valve islands
FX
- ATEX / IECEx II 2 G D
Ex db IIC T4 do T3 Gb
Ex tb IIIC T135°C do T200°C Db - CU TR (EAC)
CU-TR.012/2011 CERTIFIED 1 Ex db IIC T4…T3 Gb X
Ex tb IIIC T135°C…T200°C Db X - CSA: Klasa I Div 2, Grupa A, B, C, D T4…T3
Klasa II Div 2, Grupa E, F, G T4…T3
Klasa I Strefa 1, AEx db IIC T4…T3 Gb
Strefa 21, AEx tb IIIC T135°C…T200°C Db
HEF
- ATEX / IECEx
II 2 G Ex e IIC T4 Gb - CSA (CAN & USA)
CAN: Klasa I, Division 2, Grupa A, B, C i D, T3 lub T4
CAN: Ex e IIC T3 or T4 Gb
USA: Klasa I, Division 2, Grupa B, C i D, T3 lub T4
USA: Klasa I, Strefa 1, AEx e IIC T3 lub T4 Gb - CU TR (EAC)
2 Ex e II T4 - KGS
Ex e IIC T4
