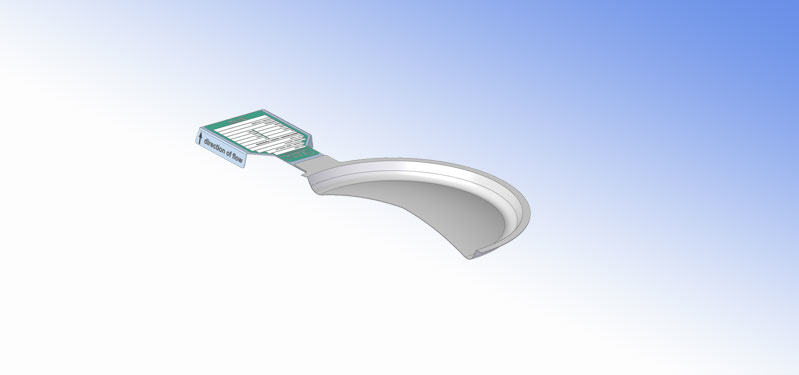

Single-layer safety plates

Single-layer safety plates are intended mainly for simple applications and high bursting pressures. The plates have been designed so that the bursting pressure is a resultant of selection of the proper thickness and strength of the material used.

The maximum admissible operating pressure is up to 70% of the nominal bursting pressure. All safety plates are available with an integrated strengthening which resists underpressure.

  • Minimum bursting pressure: 0.1 bar(g)
  • Dimension: 3 – 1000 mm
  • Max. admissible operating pressure: up to 70% of bursting pressure
  • Installation: in a screwed type head or for mounting between flanges
  • Construction: single-layer
  • Smooth surface on the process side
  • Liquid and gaseous media
  • Simple applications not requiring advanced solutions and a high precision of action
  • Stainless steel
  • Nickel
  • Aluminium
  • Inconel
  • Monel
  • Making necessary calculations
  • Delivery, installation and service works

Bursting discs – offer

Bursting discs – offer

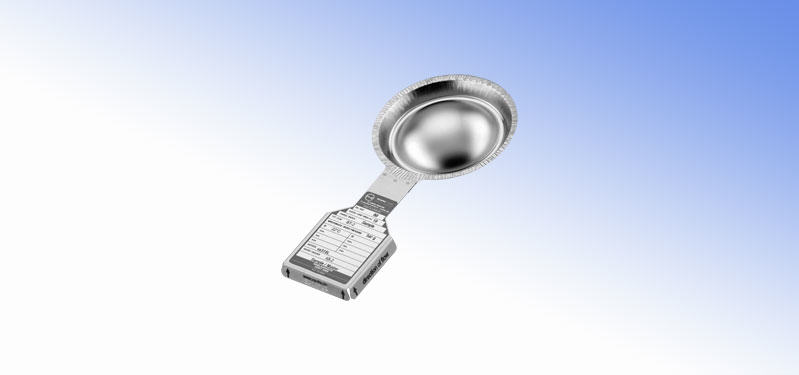

Single-layer
safety plates

Single-layer safety plates are intended mainly for simple applications and high bursting pressures. The plates have been designed so that the bursting pressure is a resultant of selection of the proper thickness and strength of the material used.

Bursting discs – offer

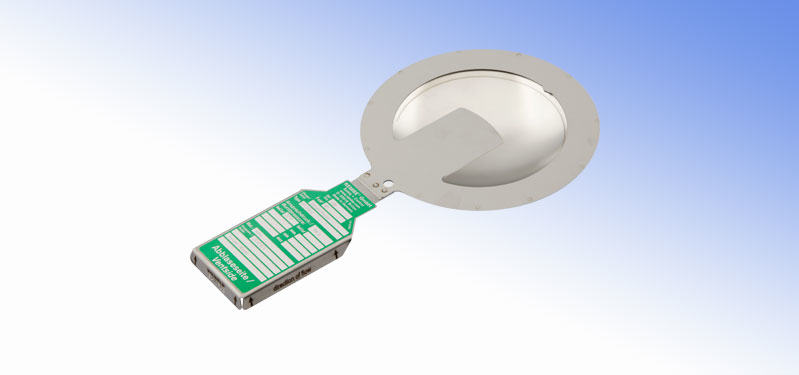

Safety plates
for pressure equipment

Innovative safety plates with a patented design, created for protection of pressure apparatus, pipelines, gas cylinders, reactors, as well as various type tanks against excessive overpressure and underpressure.

Bursting discs – offer

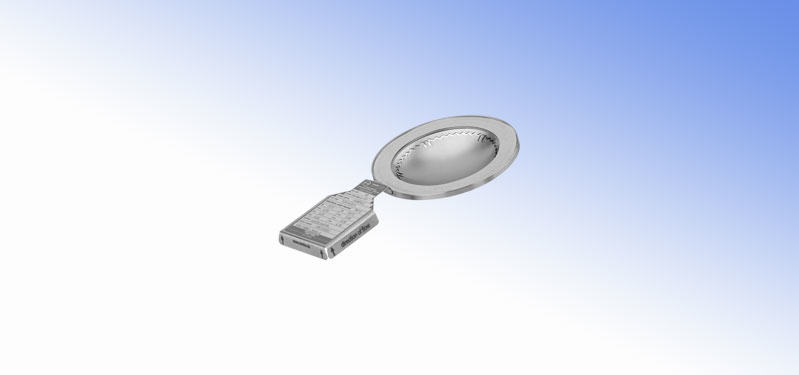

For sanitary
and aseptic applications

Safety plates are intended for sanitary and aseptic applications, therefore, they are a perfect solution for pharmaceutical, biotechnological and food industries. Moreover, due to their properties, they can be successfully applied for gases, vapours and liquids.

Bursting discs – offer

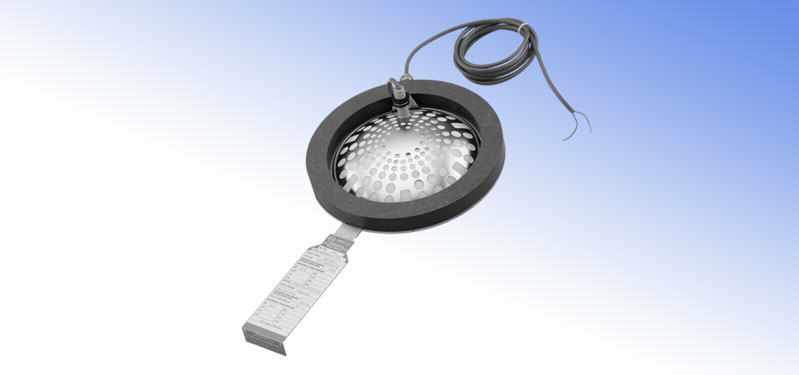

Bilateral action
safety plates

Bilateral action safety plates substitute two standard plates due to their unique construction. The important thing is that the device offered can have different opening pressure values for over- and underpressure.

Bursting discs – offer

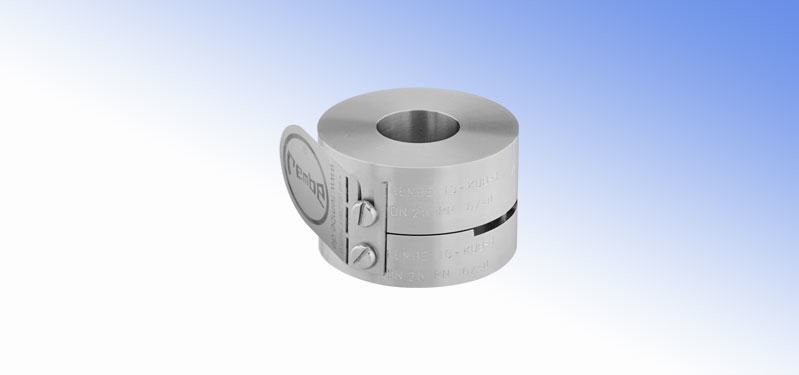

Heads for safety
plate installation

The heads are used for trouble-free mounting of safety plates with the use of flange, welded or screwed connection. This solution provides for a high tightness of the system, a proper plate operation and a long life span.
