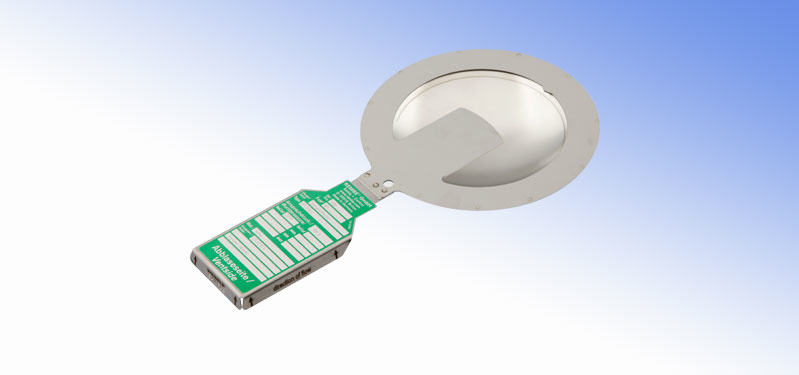

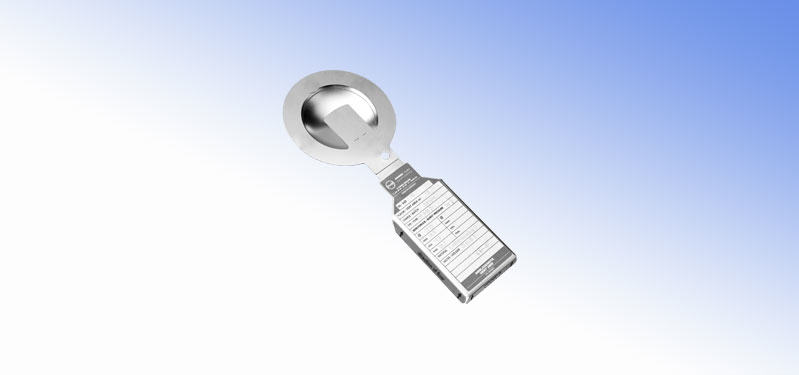

Safety plates for pressure equipment

Innovative safety plates with a patented design, created for protection of pressure apparatus, pipelines, gas cylinders, reactors, as well as various type tanks against excessive overpressure and underpressure. The pates have smooth process surfaces (without incisions, indentations and imperfections), which makes them perfect suitable for sanitary applications in food, biotechnology and pharmaceutical industries.

Due to the special production technology, a precisely specified amount of kinetic energy is necessary to open a safety plate. This solution ensures a complete opening of the plate and an immediate release of the energy excess from the system.

Safety valves for pressure equipment and apparatus guarantee operation at a pressure reaching 90% of the bursting pressure and a lack of fragmentation. A simple installation in a special head enables mounting of the system directly between flanges and does not require application of any specific torque at screwing.

Grupa WOLFF
DONAT CZAPSKI - I am at your disposal

We will answer questions about: offer, technical specification, delivery, assembly.
  • Minimum bursting pressure: 1.5 bar(g)
  • Dimension: 20-100 mm
  • Max. Admissible operating pressure: up to 90% of the bursting pressure
  • Installation: between flanges in an integrated head
  • Construction: single-layer, with a reversed shape
  • No fragmentation after action
  • Guarantee of a complete opening of the plate
  • Smooth surface on the process side
  • Suitable for pulsating pressure
  • Sanitary design
  • Gaseous media
  • Pressure equipment and apparatus, such as reactors, tanks, pipelines, gas cylinders, etc.
  • Stainless steel
  • Nickel
  • Inconel
  • Monel
  • Hastelloy
  • Making necessary calculations
  • Delivery and installation

Comprehensive investment implementation

Depending on your needs, we can provide only heating devices or perform for you a set of works involving the selection of a radiator for a given room or calculations for media heaters, so as to ensure the required temperature. In addition, we will perform mechanical and electrical installation in a safe manner, which is particularly important when the equipment is to operate in hazardous zones.

  Explosion safety

Due to over 25 years of experience in the field of explosion safety, if installation will process flammable or explosive dusts, we are able to make appropriate systems to protect against the effects of an explosion and studies required by law (including explosion risk assessment, determining of explosion hazard zones, explosion protection document).
