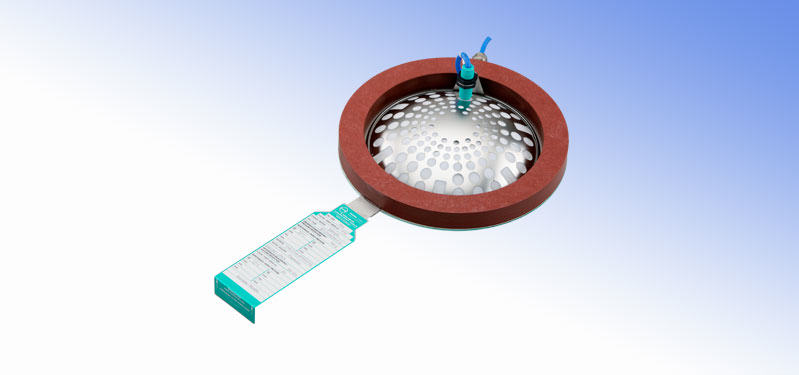

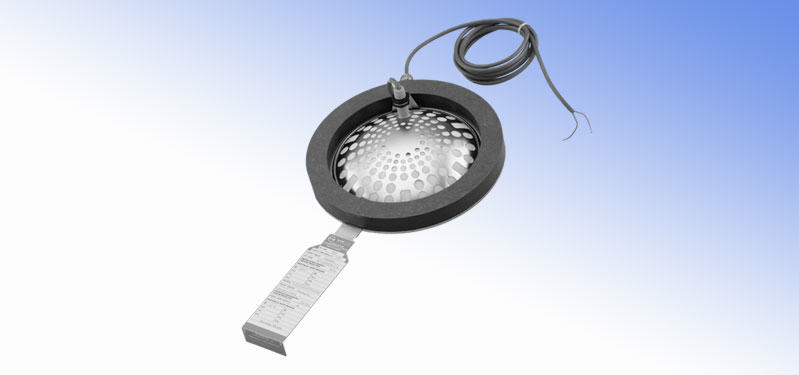

Bilateral action safety plates substitute two standard plates due to their unique construction. The important thing is that the device offered can have different opening pressure values for over- and underpressure. This type of safety membrane is characterised by a lack of fragmentation after action and reliability.
Bilateral action safety plates can be applied for gases and liquids. Most frequently, they are mounted in non-pressure tanks.
- Minimum bursting pressure: 0.1 bar(g) of overpressure, -0.05 of underpressure
- Dimension: 50-500 mm
- Max. admissible operating pressure: up to 80% for overpressure, 70% for underpressure
- Installation: directly between flanges or angular rings
- Construction: multilayer
- No fragmentation after action
- Very long life span
- Guarantee of a complete opening of the plate
- Sanitary design
- Liquid and gaseous media
- Non-pressure tanks
- Stainless steel
- Nickel
- Aluminium
- Inconel
- Monel
- Hastelloy
- Tantalus
- Titanium
- Making necessary calculations
- Delivery and installation
