Brilex KE decompression panels
Brilex KE relief panels are the economically ideal solution for protecting process equipment, where the vacuum does not exceed 60% of the rated opening pressure. Brilex KE panel is a widely used explosion vent protection worldwide, as it is certified for Kst values up to 650 bar m/s and 100% venting efficiency.
Unique features
A good and economical solution – great value for money if the vacuum in the protected equipment does not exceed 60% of the opening pressure
2 additional design options
One-piece design with cross ribbing provides faster explosion response than commercially available three-piece panels

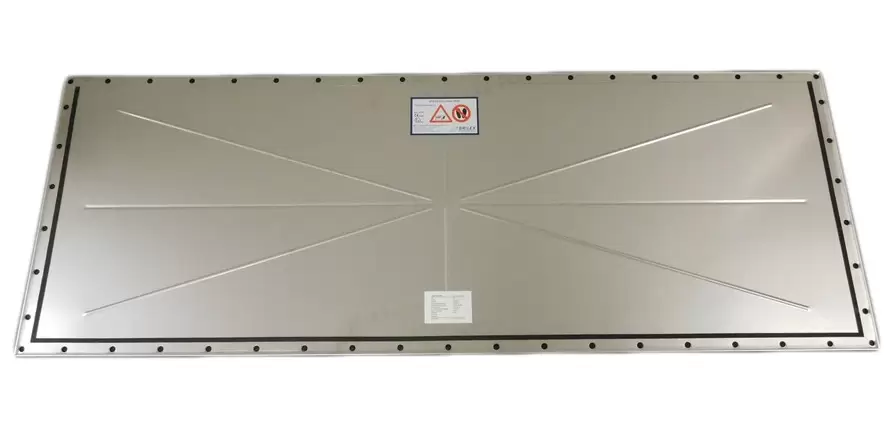

Brilex KE decompression panels are flat rectangular explosion protection vents, with a one-piece design with profiled edges, cross ribbing and integrated pressure control and seals. Such design features result in a faster reaction to a dynamic burst pressure surge than commercially available flat panels with a three-part design. It should be noted that as long as the vacuum in the protected instrument does not exceed 60% of the rated opening pressure, in this case the Brilex KE vent is an excellent alternative to the Brilex GE panel, due to its long service life and better aerodynamics compared to the domed type.
Standard specifications:
- Material: 304 SS or 316L SS
- Integrated seals
- Opening pressure (Pstat): Standard 0.1 bar at 20 C, for other certified parameters (lower or higher) opening pressures contact us
- Tolerance regarding opening pressure: Standard +/- 10%.
- Vacuum resistance: 50% of the rated opening pressure
- Maximum operating pressure: up to 60% of the rated opening pressure
- Sizes: Rectangular (229 x 229 to 1000 x 2000 mm)
- Insulation: Optionally with ROCKWOOL with aluminium cover or Armaflex.
- Venting efficiency: 100% depending on Kst. value
2 additional design options
Brilex vent TYPE KE-W
A panel which retains all the features of the standard KE vent, plus a curved design that allows the panel to fit into cylindrically shaped tanks and apparatus. Its vacuum resistance is -200 mm WC while maintaining a curved structure.
Brilex vent TYPE KE-Z
A panel designed for the protection of demanding equipment, such as cyclones. It has deeper slots in the collar area.
Browse the available dimensions of Brilex KE explosion relief vents
| INTERNAL DIMENSIONS [MM] | EXTERNAL DIMENSIONS [MM] | VENT AREA [CM²] |
|---|---|---|
| 110 X 290 | 170 X 350 | 300 |
| 229 X 229 | 309 X 309 | 510 |
| 205 X 290 | 285 X 370 | 580 |
| 229 X 305 | 309 X 385 | 680 |
| 150 X 600 | 230 X 600 | 880 |
| 220 X 420 | 300 X 500 | 900 |
| 340 X 385 | 400 X 445 | 1280 |
| 305 X 457 | 385 X 537 | 1380 |
| 247 X 610 | 327 X 690 | 1450 |
| 340 X 440 | 400 X 500 | 1480 |
| 410 X 410 | 490 X 190 | 1650 |
| 300 X 620 | 380 X 700 | 1860 |
| 320 X 640 | 380 X 700 | 2000 |
| 319 X 765 | 399 X 845 | 2350 |
| 490 X 490 | 570 X 570 | 2370 |
| 375 X 655 | 455 X 735 | 2400 |
| 390 X 620 | 470 X 700 | 2400 |
| 445 X 597 | 525 X 677 | 2600 |
| 470 X 610 | 550 X 690 | 2800 |
| 490 X 590 | 570 X 670 | 2850 |
| 420 X 770 | 500 X 850 | 3200 |
| 247 X 1345 | 327 X 1425 | 3300 |
| 525 X 668 | 645 X 788 | 3400 |
| 610 X 610 | 690 X 690 | 3650 |
| 457 X 890 | 537 X 970 | 4050 |
| 247 X 1645 | 327 X 1725 | 4050 |
| 620 X 670 | 680 X 730 | 4100 |
| 645 X 645 | 735 X 735 | 4100 |
| 653 X 653 | 733 X 733 | 4200 |
| 669 X 669 | 735 X 735 | 4350 |
| 630 X 730 | 710 X 810 | 4550 |
| 520 X 1020 | 600 X 1100 | 5250 |
| 586 X 920 | 666 X 1000 | 5350 |
| 500 X 1100 | 580 X 1180 | 5400 |
| 750 X 750 | 830 X 830 | 5600 |
| 420 X 1420 | 500 X 1500 | 5950 |
| 629 X 1004 | 689 X 1064 | 6000 |
| 750 X 840 | 830 X 920 | 6250 |
| 801 X 801 | 880 X 880 | 6400 |
| 500 X 1350 | 580 X 1430 | 6700 |
| 610 X 1118 | 690 X 1198 | 6750 |
| 645 X 1130 | 725 X 1270 | 7280 |
| 720 X 1020 | 800 X 1100 | 7300 |
| 920 X 920 | 1000 X 1000 | 8400 |
| 970 X 970 | 1050 X 1050 | 9400 |
| 1000 X 1000 | 1080 X 1080 | 10000 |
| 915 X 1118 | 995 X 1198 | 10000 |
| 586 X 1727 | 666 X 1807 | 10000 |
| 1020 X 1020 | 1100 X 1100 | 10400 |
| 790 X 1340 | 870 X 1420 | 10500 |
| 720 X 1670 | 800 X 1750 | 12000 |
| 1130 X 1130 | 1220 X 1220 | 12500 |
| 920 X 1380 | 1000 X 1460 | 12500 |
| 920 X 1380 | 1000 X 1460 | 12500 |
| 1130 X 1520 | 1220 X 1610 | 17150 |
| 1130 X 1727 | 1230 X 1827 | 19200 |
| 1000 X 2000 | 1080 X 2080 | 19500 |
